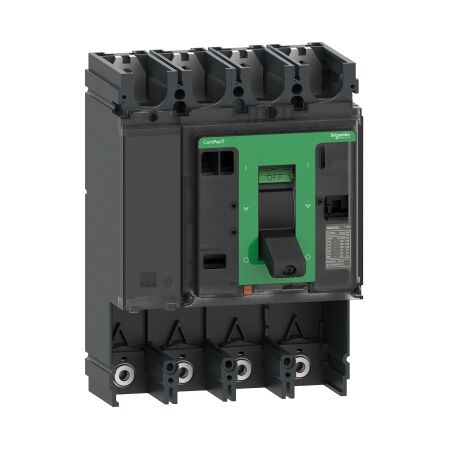

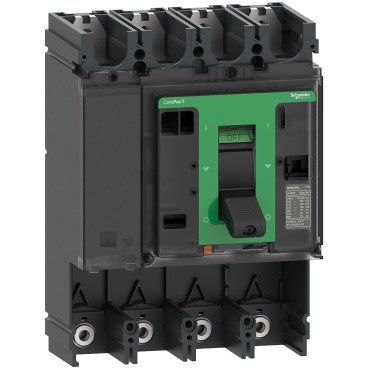

BASIC FRAME NSX400N 50kA AC 4P 400A | High Breaking Capacity | Compact Design | by Clipsal
The BASIC FRAME NSX400N 50kA AC 4P 400A is designed for reliable circuit protection in commercial and industrial electrical distribution systems. With a high breaking capacity of 50kA at 415V AC and a robust 4-pole configuration, it ensures safety and efficiency in demanding environments. Ideal for main and sub-main switchboards, this frame is compatible with NSX400N series accessories, making it a versatile choice for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BASIC FRAME NSX400N 50kA AC 4P 400A | High Breaking Capacity | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHC40N4
Alternatively Known As: NSX400N Frame, 400A MCCB, Schneider NSX400N, 4 Pole Circuit Breaker Frame, NSX400N 50kA 4P 400A
Technical Specifications
- Frame type: NSX400N
- Breaking capacity: 50kA at 415V AC
- Number of poles: 4 (three-phase + neutral)
- Rated current: 400A
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Compatible with NSX400N series accessories
- Dimensions (H x L x W): 325mm x 110mm x 210mm
- Weight: 7.5 kg
Key Features
- High breaking capacity of 50kA at 415V AC
- 4 pole (4P) configuration for three-phase and neutral protection
- Rated current: 400A
- Robust and compact frame design
- Suitable for use with NSX400N series accessories
- Reliable circuit protection for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Infrastructure and utility installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical losses.
- Designed for long service life, reducing replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Clipsal BASIC FRAME NSX400N 50kA AC 4P 400A (SCHC40N4) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring high-capacity circuit protection.
