Basic Transfer Switch 250A | 50kA 3P/3P | High Insulation Voltage by NHP
Basic transfer switch with 250A rated current and 3/3-pole configuration—ideal for industrial and commercial power distribution. Built for reliability, with high insulation voltage of 800V and 8kV impulse withstand.
Sign in
Please login to continue to your account.

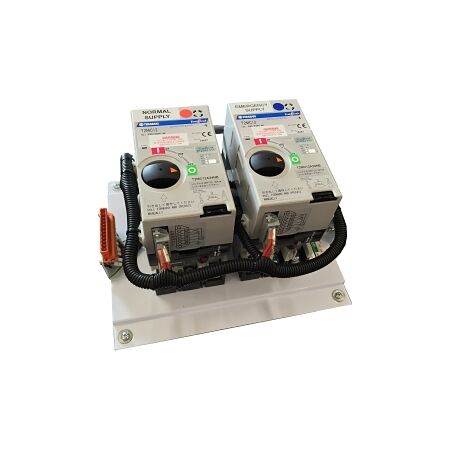

Product Name/Title: Terasaki TemBreak 2 Basic Transfer Switch S400NE 250A 50kA 3P/3P
Brand: NHP
SKU: BTSS4NE25033
Alternatively Known As: Terasaki Transfer Switch, Basic Transfer Switch, MCCB Transfer Switch
- Rated Current: 250 A
- Number of Poles: 3/3-pole
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Frame Size Rating: 400 A
- Dimensions (H x L x W): 360mm x 244mm x 415mm
- Weight: 10 kg
- Rated current of 250 A with 3/3-pole configuration.
- High insulation voltage rating of 800 V.
- Impulse withstand voltage of 8 kV.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Any application requiring reliable power transfer
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power management reduces energy waste.
1 year warranty against manufacturing defects.
The Terasaki TemBreak 2 Basic Transfer Switch S400NE is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
