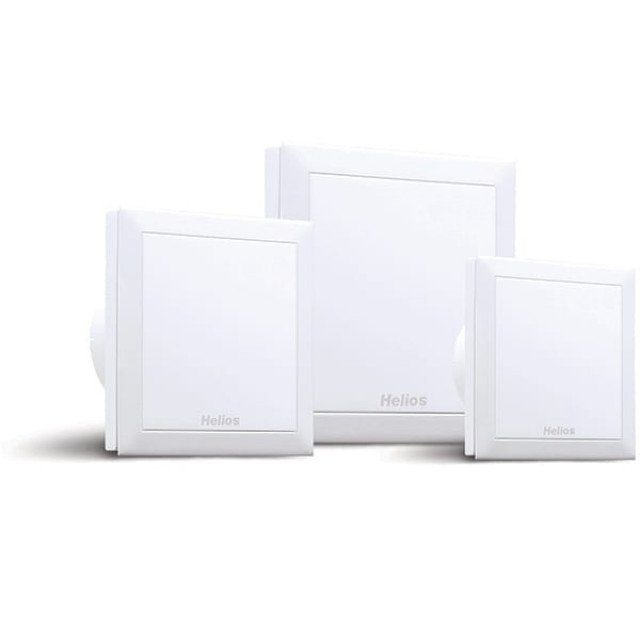

Bathroom Exhaust Fan | 240V | 9W Power & IP45 Rated | Compact Design by Allvent

BRAND: Allvent
SKU: ALV6171
$142.00 List price: $171.80
+ −
30 Days Return Delivery Options
Enhance your bathroom's air quality with the M1 Series bathroom exhaust fan, featuring a 240V power supply, 9W energy efficiency, and IP45 rating for water and dust protection. Ideal for residential use, it offers two-speed operation and a compact design for effective ventilation.

Product Name/Title: Bathroom Exhaust Fan | 240V | 9W Power & IP45 Rated | Compact Design by Allvent

Brand: Allvent

SKU: ALV6171

Alternatively Known As: MiniVent M1 Bathroom Exhaust Fan, Allvent M1 Ventilation Fan, Residential Bathroom Extractor Fan

Technical Specifications
  • Voltage: 240V
  • Frequency: 50Hz
  • Power: 9W
  • Phase: Single phase
  • Impeller Speed: 2650 RPM
  • Airflow: 75-90 m3/hr (25 L/s)
  • Noise Level: 30 dBA at 3 meters
  • Diameter: 98 mm
  • IP Rating: IP45
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Compact fascia design that remains clean and attractive
  • High-efficiency impeller for effective ventilation
  • Backdraft shutter included as standard
  • Two-speed operation for flexible airflow control
  • Energy efficient with 5 watts at 75m3/h and 10 watts at 310m3/h
  • Optional built-in energy saving features: Run-on Timer, Humidity Sensor, Presence Sensor
  • IP45 rated for protection against water and dust
Professional Installation Requirements
  • Professional installation by a licensed electrician or qualified ventilation specialist is recommended to ensure compliance with electrical and building codes.
Applications
  • Residential ventilation for bathrooms
  • Suitable for rooms requiring efficient air extraction
  • Ideal for maintaining air quality in demanding room designs
Standards & Compliance
  • Complies with AS/NZS 60335.2.80 for household and similar electrical appliances - Particular requirements for fans
Environmental Benefits
  • Low power consumption reduces energy use and environmental impact
  • Optional sensors optimize fan operation to save energy
  • High-efficiency impeller minimizes wasted energy
Warranty Information

Standard manufacturer warranty applies; please refer to Allvent for specific warranty details.

Available Now

The Allvent M1 Series MiniVent® Bathroom Exhaust Fan is available now for immediate purchase. Ideal for residential bathroom ventilation and air quality management.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
