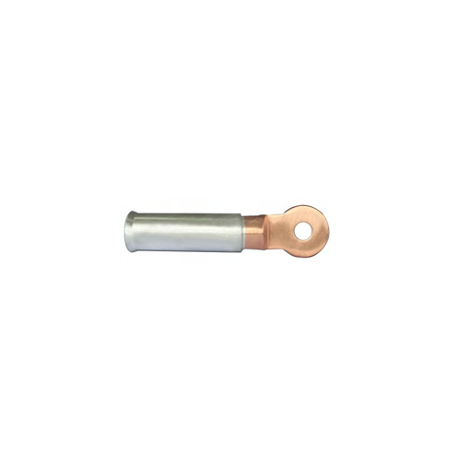

Bell Mouth Bi Metal Copper & Aluminium Lugs | 35mm² x 12mm | High Conductivity & Durable Design | IEC Compliant by United Manufacturers Australia
Bell mouth bi-metal copper and aluminium lugs with a size of 35mm² x 12mm—ideal for reliable electrical connections in industrial and commercial wiring. Built for high conductivity and durability, these lugs comply with IEC standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell Mouth Bi Metal Copper & Aluminium Lugs | 35mm² x 12mm | High Conductivity & Durable Design | IEC Compliant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM3512
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Bi-Metallic Electrical Lug, Copper Aluminium Connector
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 35.0mm² x 12mm
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 5mm x 50mm x 12mm
- Weight: 0.05 kg
Key Features
- Made from high quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and aluminium electrical connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High conductivity reduces energy loss in electrical systems
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 35mm sq-12mm by UMA are available for immediate purchase, ideal for electrical wiring and power distribution applications.
