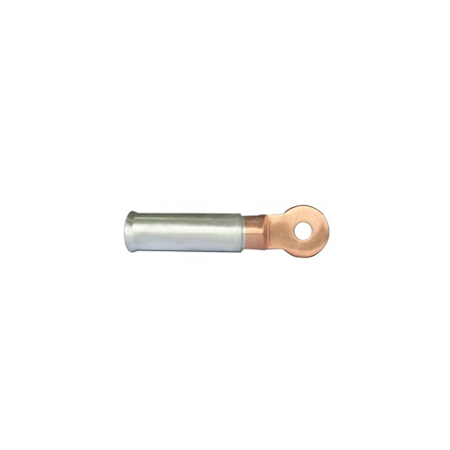

Bell Mouth Bi Metal Copper & Aluminium Lugs 630mm² x 10mm | -55°C to +100°C Operating Temp | IEC Compliant by United Manufacturers Australia
Bell mouth bi-metal copper and aluminium lugs with a size of 630mm² x 10mm and an operating temperature range of -55°C to +100°C—ideal for reliable electrical connections in industrial and commercial settings. Built for durability and compliance with IEC standards, these lugs ensure high conductivity and minimal energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell Mouth Bi Metal Copper & Aluminium Lugs 630mm² x 10mm | -55°C to +100°C Operating Temp | IEC Compliant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM63010
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Electrical Crimp Lug, Bi-Metallic Lug
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 630mm² x 10mm
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from high quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and aluminium conductors – Bi-metallic connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High conductivity reduces energy loss in electrical systems
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 630mm sq-10mm by United Manufacturers Australia is available for immediate purchase, ideal for industrial and commercial electrical applications.
