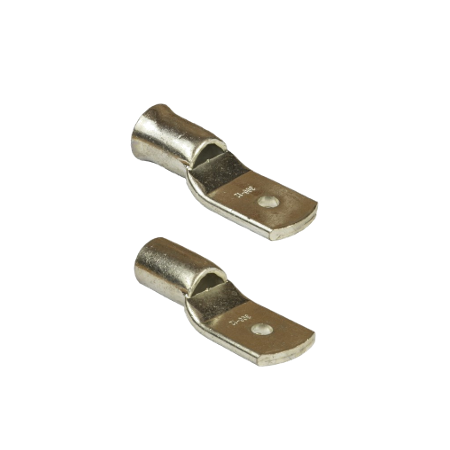

Bell Mouth Copper Lug 185mm sq-20mm Stud | Flared Entry | Electro Tinned | 99% Oxygen Free Copper by United Manufacturers Australia
Bell mouth copper lug with a 185mm sq size and 20mm stud—ideal for secure electrical connections in industrial and commercial installations. Built for durability with 99% oxygen-free copper and electro tinned finish for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell Mouth Copper Lug 185mm sq-20mm Stud | Flared Entry | Electro Tinned | 99% Oxygen Free Copper by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBML185-20
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Type: Flared Entry
- Size: 185.0mm sq - 20.0mm stud
- Material: 99% oxygen free copper
- Finish: Electro Tinned
- Operating Temperature: -55°C to +155°C
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.2 kg
Key Features
- Fully annealed for flexibility and durability
- Made from 99% oxygen free copper
- Electro tinned for corrosion resistance
- Flared entry design for easy cable insertion
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections in industrial and commercial electrical installations
- Used for secure and reliable cable terminations
- Suitable for power distribution and grounding systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Electro tinning enhances longevity reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per United Manufacturers Australia standard policy.
Available Now
The Bell Mouth Copper Lug 185mm sq-20mm stud by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical installations requiring durable and reliable copper lugs.
