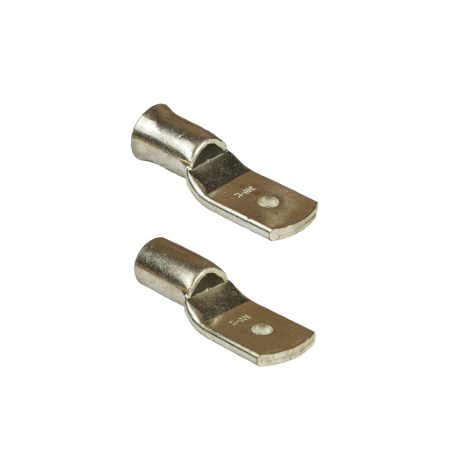

Bell Mouth Copper Lug 500mm² | 12mm Stud Size | Flared Entry Design | Corrosion Resistant by United Manufacturers Australia
Bell mouth copper lug with 500mm² cable size and 12mm stud size—ideal for heavy-duty electrical wiring and industrial applications. Built for superior conductivity with 99% oxygen-free copper and electro-tinned for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell Mouth Copper Lug 500mm² | 12mm Stud Size | Flared Entry Design | Corrosion Resistant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBML500-12
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Material: 99% oxygen free copper, electro tinned
- Type: Flared Entry
- Size: 500mm² cable size, 12mm stud size
- Operating Temperature: -55°C to +155°C
- Pack Quantity: 1
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.5 kg
Key Features
- Fully annealed for maximum conductivity and flexibility
- Made from 99% oxygen free copper for superior electrical performance
- Electro tinned to resist corrosion and enhance durability
- Flared entry design for easy cable insertion
- Wide operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections in industrial and commercial power distribution
- Heavy-duty electrical wiring and grounding
- Use in switchboards, transformers, and electrical panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Electro tinning reduces corrosion, extending product life and reducing waste
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Bell Mouth Copper Lug 500mm sq-12mm stud is available for immediate purchase, ideal for heavy-duty electrical wiring and industrial applications.
