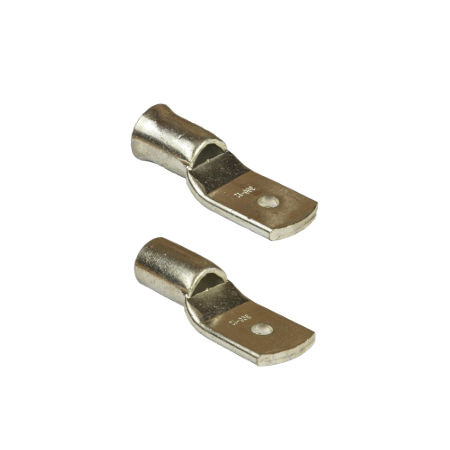

Bell Mouth Copper Lug 500mm² | 99% Oxygen Free Copper | Flared Entry Design | Corrosion Resistant by United Manufacturers Australia
Bell mouth copper lug with 500mm² cable size and 16mm stud—ideal for industrial and commercial electrical installations. Built for high conductivity and corrosion resistance, featuring a flared entry design for easy cable insertion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell Mouth Copper Lug 500mm² | 99% Oxygen Free Copper | Flared Entry Design | Corrosion Resistant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBML500-16
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Material: 99% oxygen free copper, electro tinned
- Type: Flared Entry
- Size: 500mm² cable size with 16mm stud
- Operating Temperature: -55°C to +155°C
- Pack Quantity: 1
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Fully annealed for maximum flexibility and conductivity
- Made from 99% oxygen free copper
- Electro tinned for enhanced corrosion resistance
- Operating temperature range from -55°C to +155°C
- Flared entry design for easy cable insertion
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring high conductivity and corrosion resistance
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Long service life reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Bell Mouth Copper Lug 500mm sq-16mm stud by United Manufacturers Australia is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring reliable copper connections.
