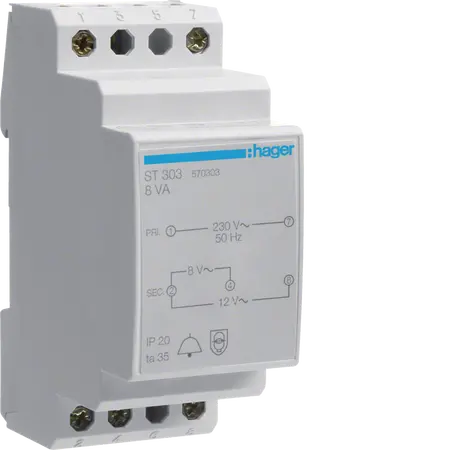

Bell Transformer 8VA 230V | 8-12V Output | Compact Design | IP20 by Hager
Bell transformer with 8-12V output and compact design—ideal for residential and commercial doorbell systems. Built for efficient power transformation, with protective insulation and temperature safeguards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bell transformer 8VA 230V 8-12V
Brand: Hager
SKU: ST303
Alternatively Known As: Bell transformer 230V
Technical Specifications
- Voltage Output: 8 - 12 V
- Rated Operational Voltage: 230 - 230 V
- Output Voltage 2: 12 V
- Rated Insulation Voltage: 4000 V
- Number of Modules: 2
- Power Consumption: 8 VA
- Power: 8 VA
- Power Absorbed: 8 W
- Height: 111 mm
- Width: 35 mm
- Depth: 65 mm
- Ingress Protection (IP) Class: IP20
- Temperature Protection: Yes
- Is Short-circuit Protected: Yes
- On/off Switch: No
- Operating Temperature: -20 - 35 °C
- Cross-section Flexible Conductor: 4 mm²
- Cross-section Rigid Conductor: 6 mm²
- Frequency: 50 - 50 Hz
- Intensity Output 1: 1 A
- Intensity Output 2: 0.67 A
- Max. Intensity of Secondary: 1 A
- Mounting On: DIN rail
- Nominal Tightening Torque: 1.20 Nm
- Number of Half Modules of 17.5 mm: 4
- Suitable for DIN Rail: Yes
- Dimensions (H x L x W): 111mm x 64mm x 35mm
- Weight: 0.2 kg
Key Features
- Efficient power transformation from 230V to 8-12V
- Compact design for easy integration
- Protective insulation and temperature safeguards
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a certified electrician is recommended to ensure safety and compliance.
Applications
- Residential: Doorbell systems, small electronic devices
- Commercial: Office buildings, commercial retail spaces
Standards & Compliance
- Meets Australian standards for electrical safety and efficiency
Environmental Benefits
- Energy efficient, reducing power waste and consumption
Warranty Information
1-year warranty against manufacturing defects.
Available Now
The Bell transformer 8VA 230V 8-12V is available now for immediate purchase, suitable for residential and commercial applications requiring reliable power transformation.
