Bellmouth Copper Lug 10mm² | 12mm Stud | High Conductivity & Easy Insertion by Cabac
The Cabac Bellmouth Copper Lug 10mm2 Cable 12mm Stud is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

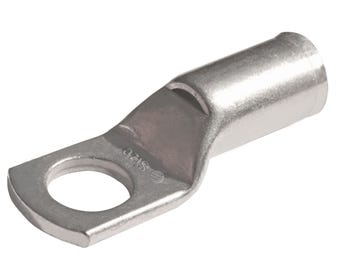

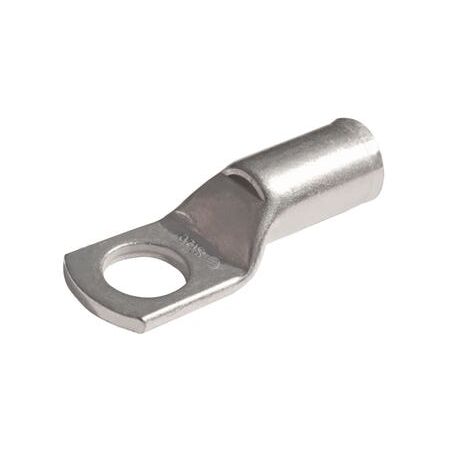

Product Name/Title: Bellmouth Copper Lug 10mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL10-12BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Fine Stranded Cable Lug, Crimp Copper Lug
Technical Specifications
- Nominal Conductor: 10mm²
- ID Size: 4.7mm
- Stud Size: 12mm
- Conductive Material: Copper 99.95% pure, oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.02 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation recommended using appropriate crimping tools and methods for fine stranded cables as per CABAC guidelines.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, improving longevity
Warranty Information
Test reports available on request; warranty details available through Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 10mm2 Cable 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable cable termination.
