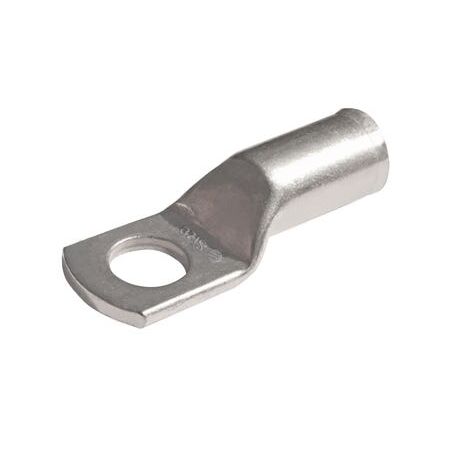

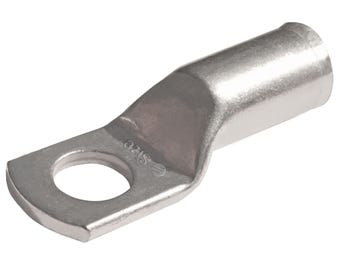

Bellmouth Copper Lug 185mm² | 16mm Stud | High Conductivity | Tin Plated by Cabac
Bellmouth copper lug with 185mm² capacity and 16mm stud—ideal for industrial and commercial electrical installations. Built for high conductivity and corrosion resistance, with easy conductor insertion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 185mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL185-16BM
Alternatively Known As: Copper Cable Lug, Bellmouth Cable Lug, Copper Crimp Lug, Stranded Cable Lug, Electrical Cable Connector
Technical Specifications
- Nominal Conductor Size: 185mm²
- ID Size: 18.4mm
- Stud Size: 16mm
- Conductive Material: Copper 99.95% pure, oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Bellmouth design facilitates easy conductor insertion
- Made from 99.95% pure annealed copper for high conductivity
- Tin electroplated with 5-10 microns thickness for corrosion resistance
- Suitable for fine strand conductors
- Crimped with CABAC and MSS Power standard tooling and dies
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in industrial and commercial electrical installations
- Ideal for crimping and connecting stranded copper cables
Standards & Compliance
- Complies with AS4325.1 for copper cable lugs
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin plating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 185mm2 Cable 16mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable connections.
