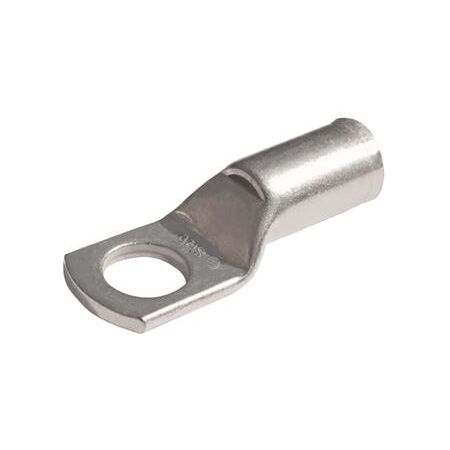

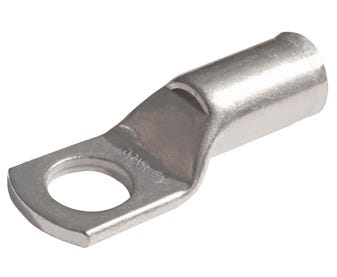

Bellmouth Copper Lug 300mm2 | High Conductivity | Easy Insertion | 16mm Stud by Cabac
The Bellmouth Copper Lug 300mm2 Cable 16mm Stud by Cabac is designed for stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 300mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL300-16BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Stranded Cable Lug, Fine Strand Cable Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 p.p.m max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead + antimony
- Thickness of plating: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by qualified electricians is recommended, especially for fine stranded cables requiring higher crimping force and special crimping methods.
Applications
- Electrical power connectivity for stranded flexible cables
- Suitable for fine strand conductors in industrial and commercial electrical installations
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Bellmouth Copper Lug 300mm2 Cable 16mm Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy conductor insertion.
