Bellmouth Copper Lug 500mm2 | 99.95% Pure Copper | Bell Mouth Design | Electroplated for Durability by Cabac
The Cabac Bellmouth Copper Lug 500mm2 Cable Blank Stud is designed for fine stranded flexible cables, featuring a bell mouth funnel for easy conductor insertion and high conductivity copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

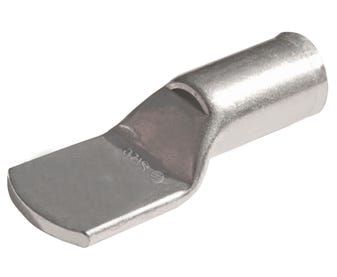

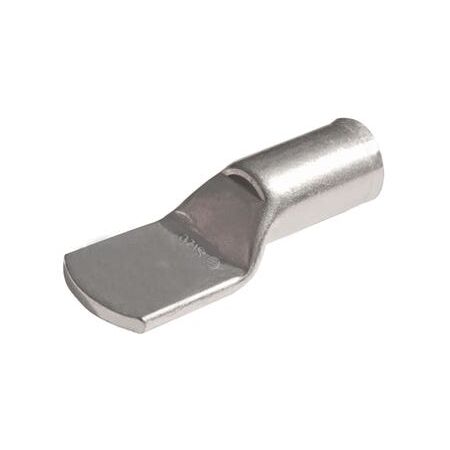

Product Name/Title: Bellmouth Copper Lug 500mm2 Cable Blank Stud
Brand: Cabac
SKU: CAL500BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Fine Stranded Cable Lug, Copper Cable Terminal, Electrical Copper Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55°C to 155°C
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Recommended torque compliant with AS/NZS standards
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper (99.95% pure)
- Special bell mouth funnel design for easy conductor insertion
- Suitable for fine stranded conductors which tend to splay out after stripping
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Tooling interchangeable between CABAC, Utilux, and Burndy
- Operating temperature range from -55°C to 155°C
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals using recommended crimping tools and methods to ensure proper connection and compliance with AS/NZS standards.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity copper lugs
- Used in industrial, commercial, and utility electrical systems
Standards & Compliance
- AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable materials extend product lifespan, reducing waste
- Electroplating with tin enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from Cabac; standard manufacturer warranty applies.
Available Now
The Cabac Bellmouth Copper Lug 500mm2 Cable Blank Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable and high-quality cable lugs.
