Bellmouth Copper Lug 50mm² Cable | 10mm Stud | High Conductivity | Easy Insertion by Cabac
Bellmouth copper lug with 50mm² capacity and 10mm stud—ideal for electrical power connectivity. Built for fine stranded cables, with high conductivity copper and easy conductor insertion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

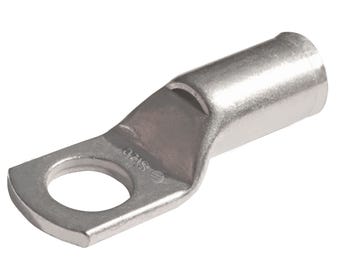

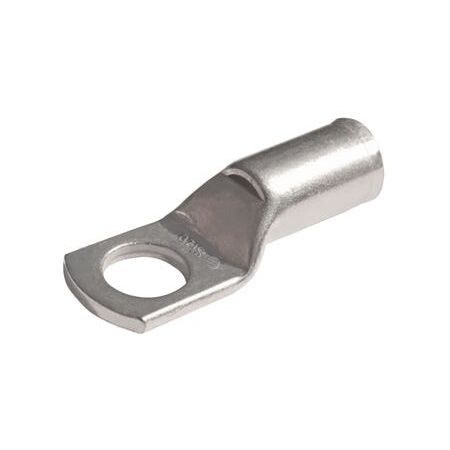

Product Name/Title: Bellmouth Copper Lug 50mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL50-10BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, 50mm2 Copper Lug, 10mm Stud Copper Lug
Technical Specifications
- Nominal Conductor Size: 50mm²
- ID Size: 9.5mm
- Stud Size: 10mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bellmouth Copper Lug 50mm2 Cable 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy cable termination.
