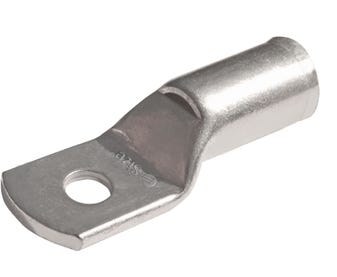

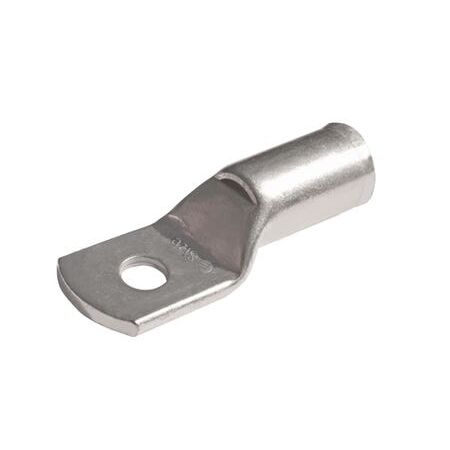

Bellmouth Copper Lug 95mm² Cable | 8mm Stud | High Conductivity | Easy Insertion by Cabac
Bellmouth copper lug with 95mm² cable capacity and 8mm stud—ideal for industrial and commercial electrical installations. Built for fine stranded flexible cables, with high conductivity annealed copper and easy conductor insertion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 95mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL95-8BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug 95mm2, Bellmouth Cable Lug, Copper Crimp Lug 95mm2
Technical Specifications
- Nominal Conductor Size: 95mm²
- ID Size: 13.4mm
- Stud Size: 8mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 8mm x 50mm x 13.4mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and connection, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in industrial and commercial electrical installations
- Ideal for crimping and connecting stranded copper cables
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 95mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy cable termination.
