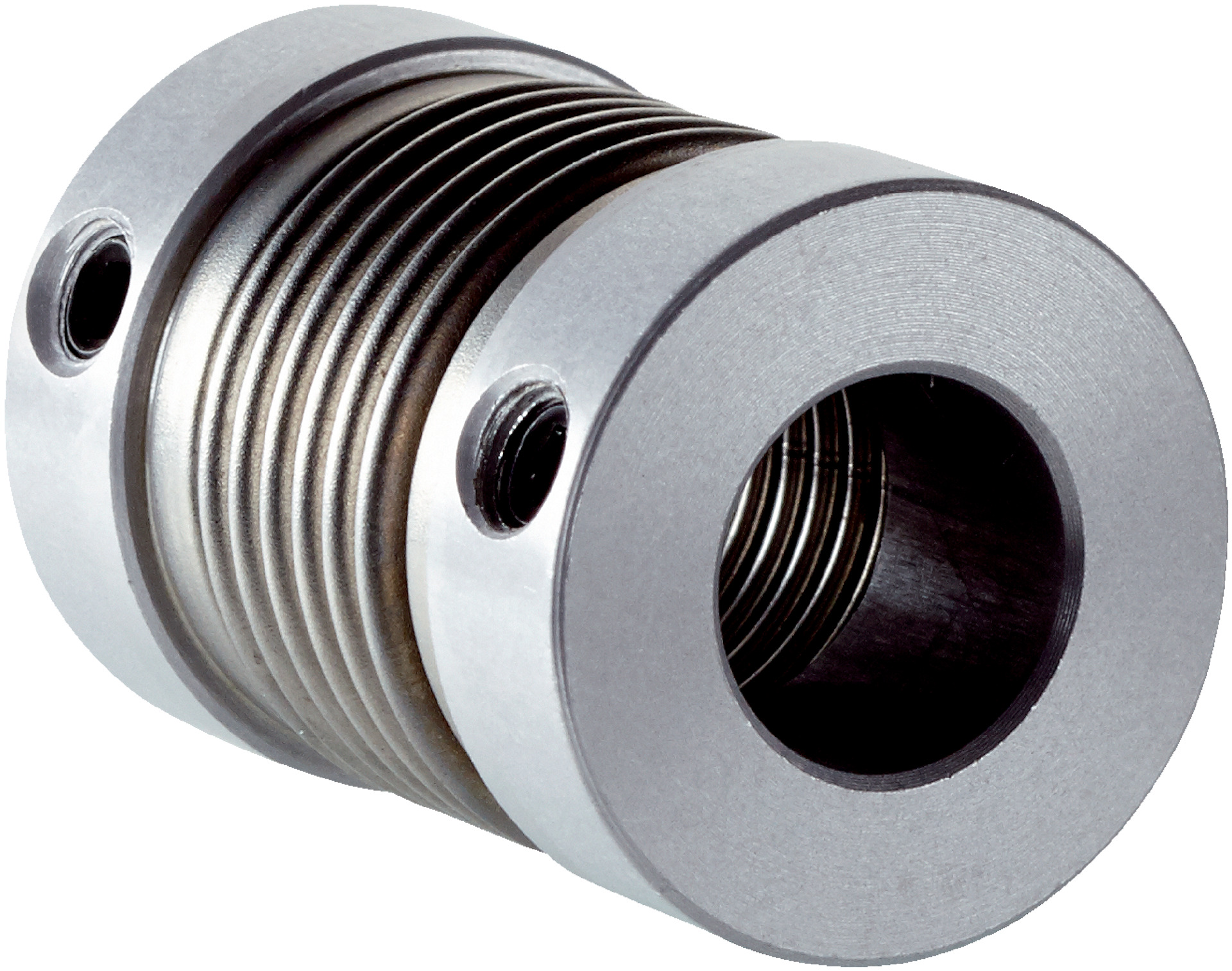

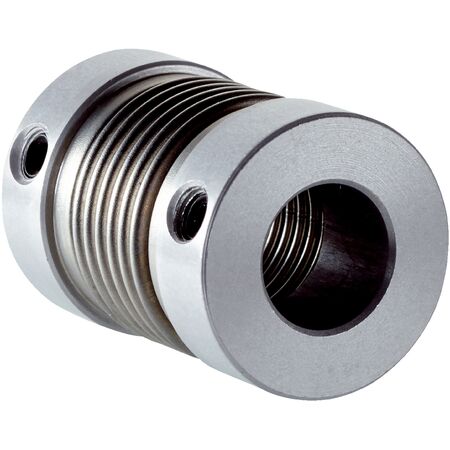

Bellows Shaft Coupling 10mm | Stainless Steel | Maximum Speed 10,000 RPM | by SICK
The Bellows Shaft Coupling 10mm is designed for precision mechanical drive systems, featuring a maximum speed of 10,000 RPM and a robust stainless steel construction. Ideal for industrial machinery and automation applications, it accommodates shaft offsets of ± 0.25 mm radially and ± 0.4 mm axially, ensuring reliable performance and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed: 10,000 rpm
- Operating temperature range: –30° to +120° C
- Maximum torque: 120 Ncm
- Material: Stainless steel bellows
- Torsional spring stiffness: 150 Nm/rad
- Fixation: Two setscrews each side
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Bellows coupling for shaft diameters 10 mm / 10 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed up to 10,000 rpm
- Temperature range from –30° to +120° C
- Maximum torque of 120 Ncm
- Made of stainless steel bellows with two setscrews for fixation
- Torsional spring stiffness of 150 Nm/rad
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and secure fixation.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical drive systems
- Automation and robotics shaft coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High precision reduces energy loss in mechanical transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KUP-1010-BS Bellows Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft coupling applications.
