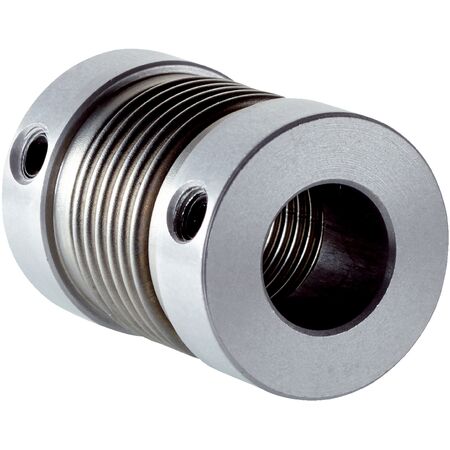

Bellows Shaft Coupling 6mm Flexible Design Stainless Steel Construction SICK

BRAND: SICK
SKU: 2075378
$126.50 List price: $159.00
+ −
30 Days Return Electricians Unlock Trade Access
The Bellows Shaft Coupling 6mm is engineered for flexible shaft connections, featuring a maximum speed of 10,000 rpm and a robust stainless steel construction.
Technical Specifications
  • Shaft diameter: 6 mm / 6 mm
  • Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
  • Maximum speed: 10,000 rpm
  • Operating temperature range: –30 °C to +120 °C
  • Maximum torque: 120 Ncm
  • Material: Stainless steel bellows
  • Fixing method: Two setscrews each
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Bellows coupling design for flexible shaft connection
  • Shaft diameter 6 mm / 6 mm
  • Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
  • Maximum speed up to 10,000 rpm
  • Temperature range from –30 °C to +120 °C
  • Maximum torque 120 Ncm
  • Constructed with stainless steel bellows
  • Fixed with two setscrews each for secure attachment
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fixing.
Applications
  • Industrial machinery shaft adaptation
  • Precision mechanical drive systems
  • Automation and robotics shaft coupling
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel construction reduces replacement frequency and waste
  • Supports efficient mechanical power transmission reducing energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0606-BS Bellows Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
