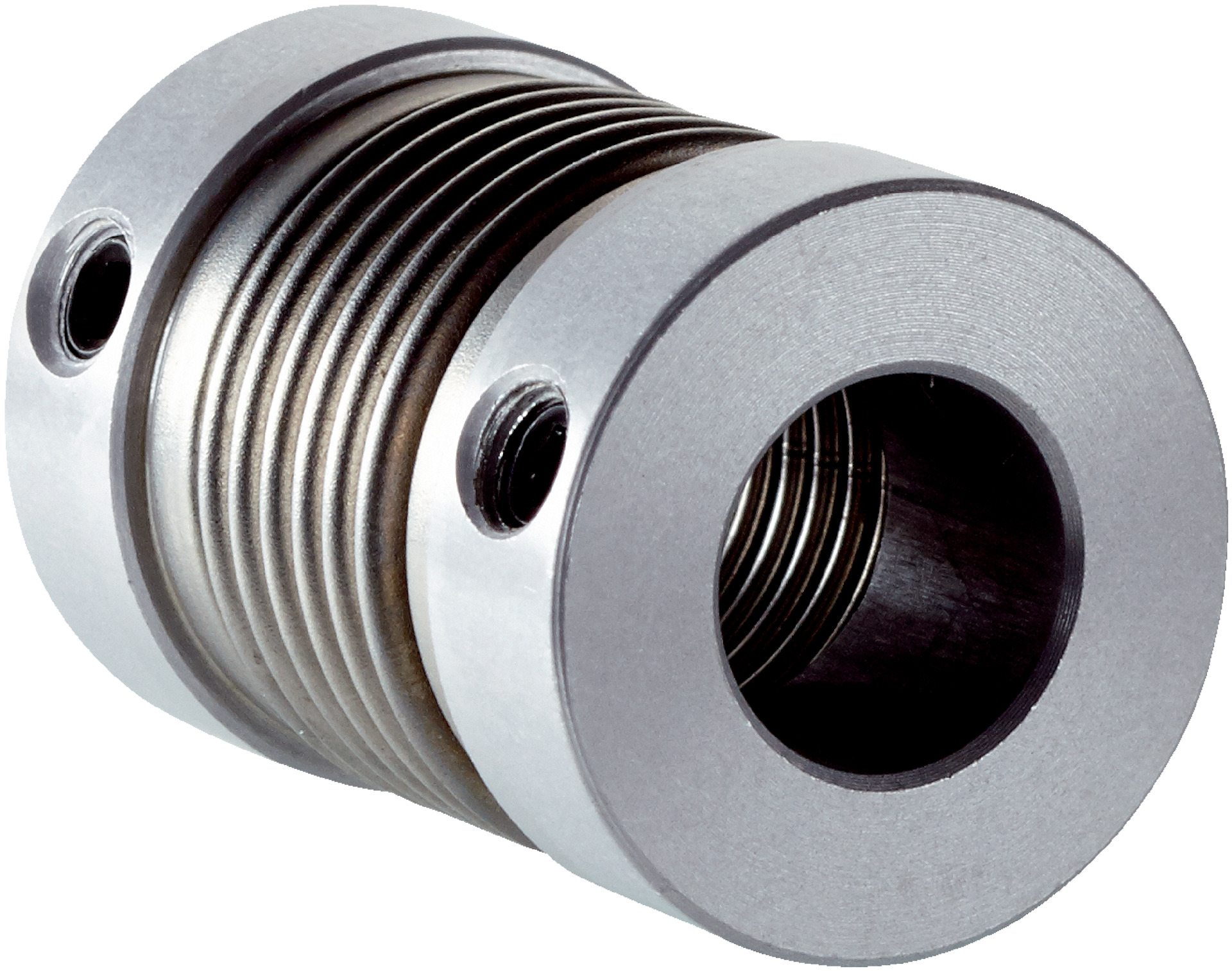

Bellows Shaft Coupling 6mm | Flexible Design | Stainless Steel Construction | Max Speed 10,000 rpm | by SICK
The Bellows Shaft Coupling 6mm is engineered for flexible shaft connections, featuring a maximum speed of 10,000 rpm and a robust stainless steel construction. Ideal for industrial machinery and automation applications, it accommodates radial and axial offsets while ensuring secure attachment with two setscrews. This coupling is perfect for precision mechanical drive systems, enhancing efficiency and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed: 10,000 rpm
- Operating temperature range: –30 °C to +120 °C
- Maximum torque: 120 Ncm
- Material: Stainless steel bellows
- Fixing method: Two setscrews each
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Bellows coupling design for flexible shaft connection
- Shaft diameter 6 mm / 6 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed up to 10,000 rpm
- Temperature range from –30 °C to +120 °C
- Maximum torque 120 Ncm
- Constructed with stainless steel bellows
- Fixed with two setscrews each for secure attachment
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fixing.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical drive systems
- Automation and robotics shaft coupling
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Supports efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

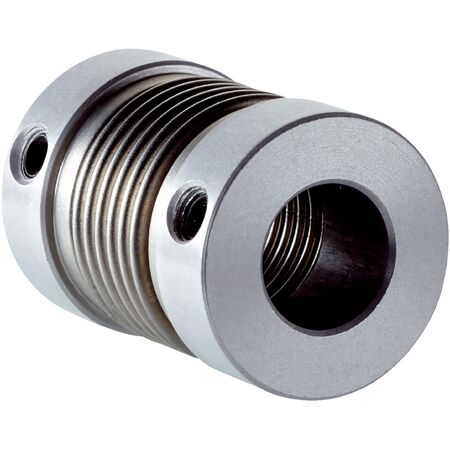

The SICK KUP-0606-BS Bellows Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
