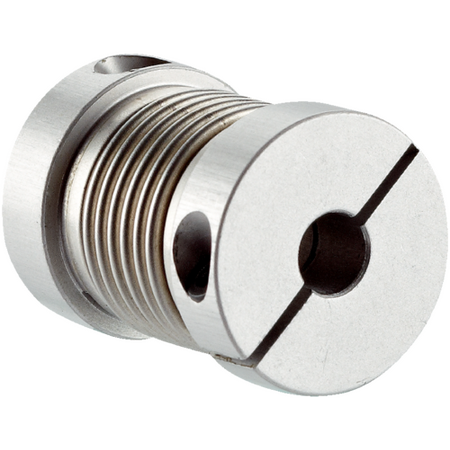

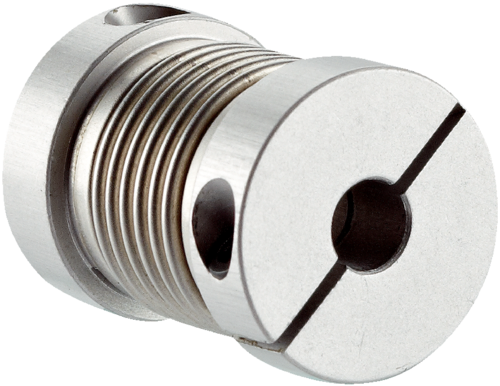

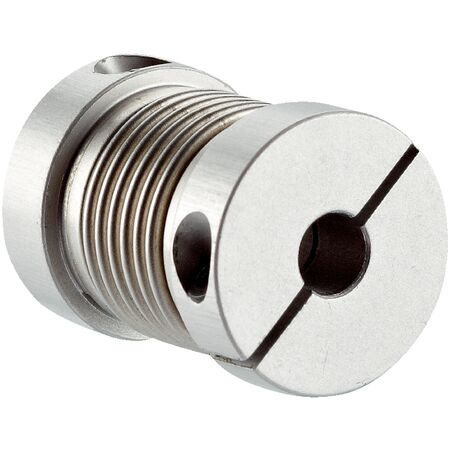

Bellows Shaft Coupling KUP-0606-B Flexible Design Max Speed 10,000 RPM SICK
The KUP-0606-B bellows shaft coupling is engineered for flexible shaft connections, featuring a maximum speed of 10,000 RPM and a robust design made from stainless
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Max shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Max speed: 10,000 rpm
- Operating temperature: –30 °C to +120 °C
- Max torque: 120 Ncm
- Material: stainless steel bellows, aluminum hub
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Bellows coupling design for flexible shaft connection
- Shaft diameter: 6 mm / 6 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed: 10,000 rpm
- Operating temperature range: –30 °C to +120 °C
- Maximum torque: 120 Ncm
- Material: stainless steel bellows with aluminum hub
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical coupling in automation systems
- Robotics and servo motor shaft connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and aluminum materials extend product life and reduce waste
- Enables efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
The SICK KUP-0606-B bellows shaft coupling is available for immediate purchase, ideal for industrial and automation applications requiring precise shaft adaptation.
