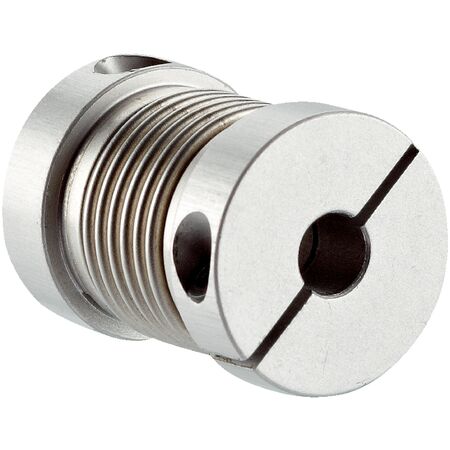

Bellows Shaft Coupling KUP-0606-B | Flexible Design | Max Speed 10,000 RPM | Stainless Steel & Aluminum | by SICK
The KUP-0606-B bellows shaft coupling is engineered for flexible shaft connections, featuring a maximum speed of 10,000 RPM and a robust design made from stainless steel and aluminum. Ideal for industrial machinery and automation systems, this coupling accommodates shaft offsets and ensures precise mechanical coupling for robotics and servo motors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Max shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Max speed: 10,000 rpm
- Operating temperature: –30 °C to +120 °C
- Max torque: 120 Ncm
- Material: stainless steel bellows, aluminum hub
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Bellows coupling design for flexible shaft connection
- Shaft diameter: 6 mm / 6 mm
- Maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°
- Maximum speed: 10,000 rpm
- Operating temperature range: –30 °C to +120 °C
- Maximum torque: 120 Ncm
- Material: stainless steel bellows with aluminum hub
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical coupling in automation systems
- Robotics and servo motor shaft connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and aluminum materials extend product life and reduce waste
- Enables efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
The SICK KUP-0606-B bellows shaft coupling is available for immediate purchase, ideal for industrial and automation applications requiring precise shaft adaptation.
