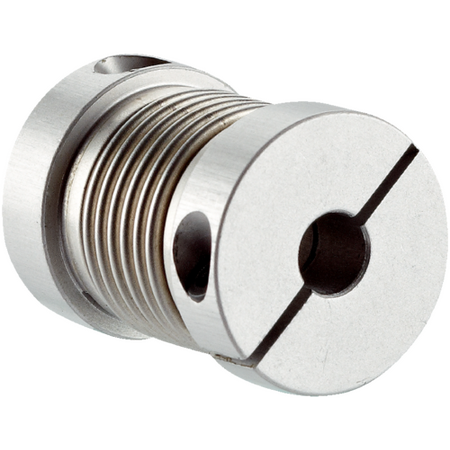

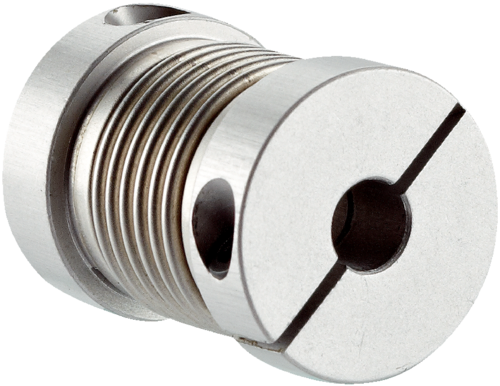

Bellows Shaft Coupling KUP-0610-B Flexible Design 10,000 RPM Max Speed SICK

BRAND: SICK
SKU: 5312982
$122.80 List price: $154.30
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-0610-B Bellows Shaft Coupling is engineered for flexible shaft connections, accommodating 6 mm and 10 mm diameters.
Technical Specifications
  • Shaft diameter: 6 mm / 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed: 10,000 rpm
  • Operating temperature: -30 °C to +120 °C
  • Maximum torque: 120 Ncm
  • Material: stainless steel bellows, aluminum hub
  • Dimensions (H x L x W): 40mm x 60mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Bellows coupling design for flexible shaft connection
  • Shaft diameter compatibility: 6 mm and 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed up to 10,000 rpm
  • Operating temperature range from -30 °C to +120 °C
  • Maximum torque capacity of 120 Ncm
  • Constructed with stainless steel bellows and aluminum hub for durability
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper alignment and secure mounting.
Applications
  • Industrial machinery shaft adaptation
  • Precision mechanical drive systems
  • Automation equipment requiring flexible shaft coupling
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Supports efficient mechanical power transmission reducing energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0610-B bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
