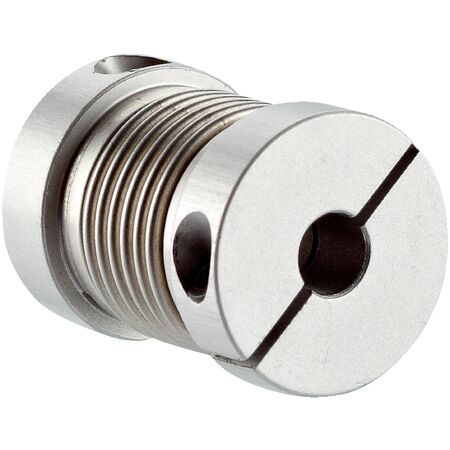

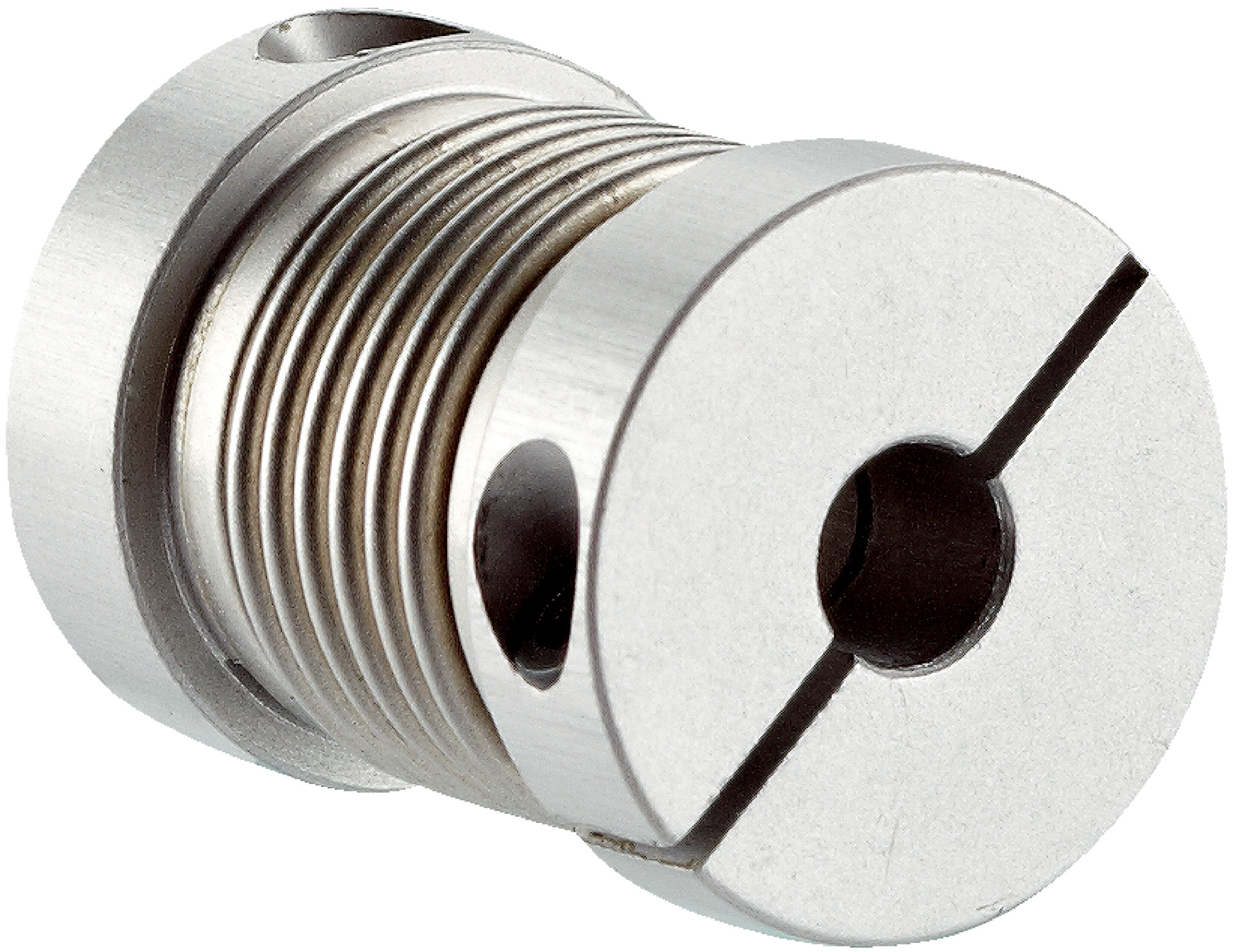

Bellows Shaft Coupling KUP-0610-B | Flexible Design | 10,000 RPM Max Speed | Stainless Steel & Aluminum | by SICK

BRAND: SICK
SKU: 5312982
$116.90 List price: $146.90
+ −
30 Days Return Delivery Options
The KUP-0610-B Bellows Shaft Coupling is engineered for flexible shaft connections, accommodating 6 mm and 10 mm diameters. With a maximum speed of 10,000 RPM and a torque capacity of 120 Ncm, it's perfect for industrial machinery and automation systems. Built from durable stainless steel and aluminum, this coupling ensures reliable performance in demanding environments, making it an essential component for precision mechanical drive systems.
Technical Specifications
  • Shaft diameter: 6 mm / 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed: 10,000 rpm
  • Operating temperature: -30 °C to +120 °C
  • Maximum torque: 120 Ncm
  • Material: stainless steel bellows, aluminum hub
  • Dimensions (H x L x W): 40mm x 60mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Bellows coupling design for flexible shaft connection
  • Shaft diameter compatibility: 6 mm and 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed up to 10,000 rpm
  • Operating temperature range from -30 °C to +120 °C
  • Maximum torque capacity of 120 Ncm
  • Constructed with stainless steel bellows and aluminum hub for durability
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper alignment and secure mounting.
Applications
  • Industrial machinery shaft adaptation
  • Precision mechanical drive systems
  • Automation equipment requiring flexible shaft coupling
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Supports efficient mechanical power transmission reducing energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0610-B bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
