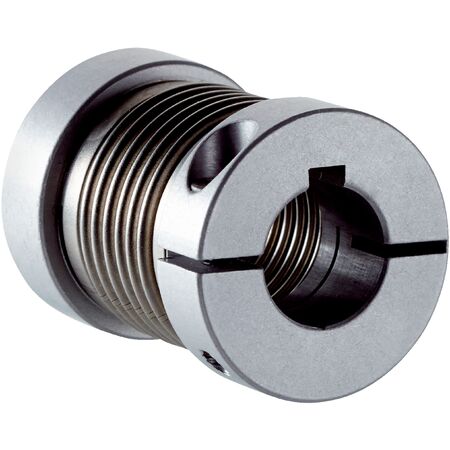

Bellows Shaft Coupling KUP-0610-BP Flexible Design 10,000 RPM Max Speed SICK
The KUP-0610-BP bellows shaft coupling is engineered for flexible shaft connections, accommodating 6 mm and 10 mm diameters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
- Maximum speed: 10,000 rpm
- Operating temperature: -30 °C to +120 °C
- Maximum torque: 120 Ncm
- Material: stainless steel bellows, aluminum hub
- Compatible with feather key
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Bellows coupling design for flexible shaft connection
- Shaft diameter compatibility: 6 mm and 10 mm
- Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
- Maximum speed up to 10,000 rpm
- Operating temperature range from -30 °C to +120 °C
- Maximum torque capacity of 120 Ncm
- Constructed with stainless steel bellows and aluminum hub
- Designed for use with feather key
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and secure fitting.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical drive systems
- Automation equipment requiring flexible shaft coupling
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel and aluminum construction extends product life and reduces waste
- Enables efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0610-BP bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
