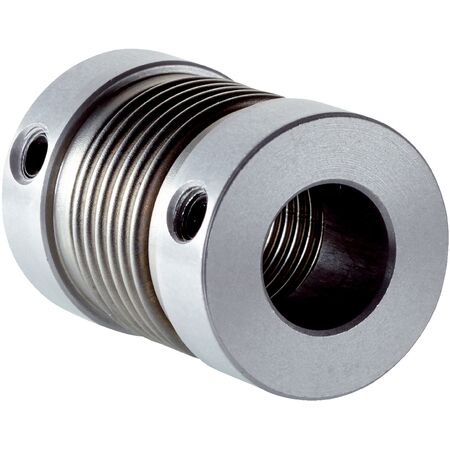

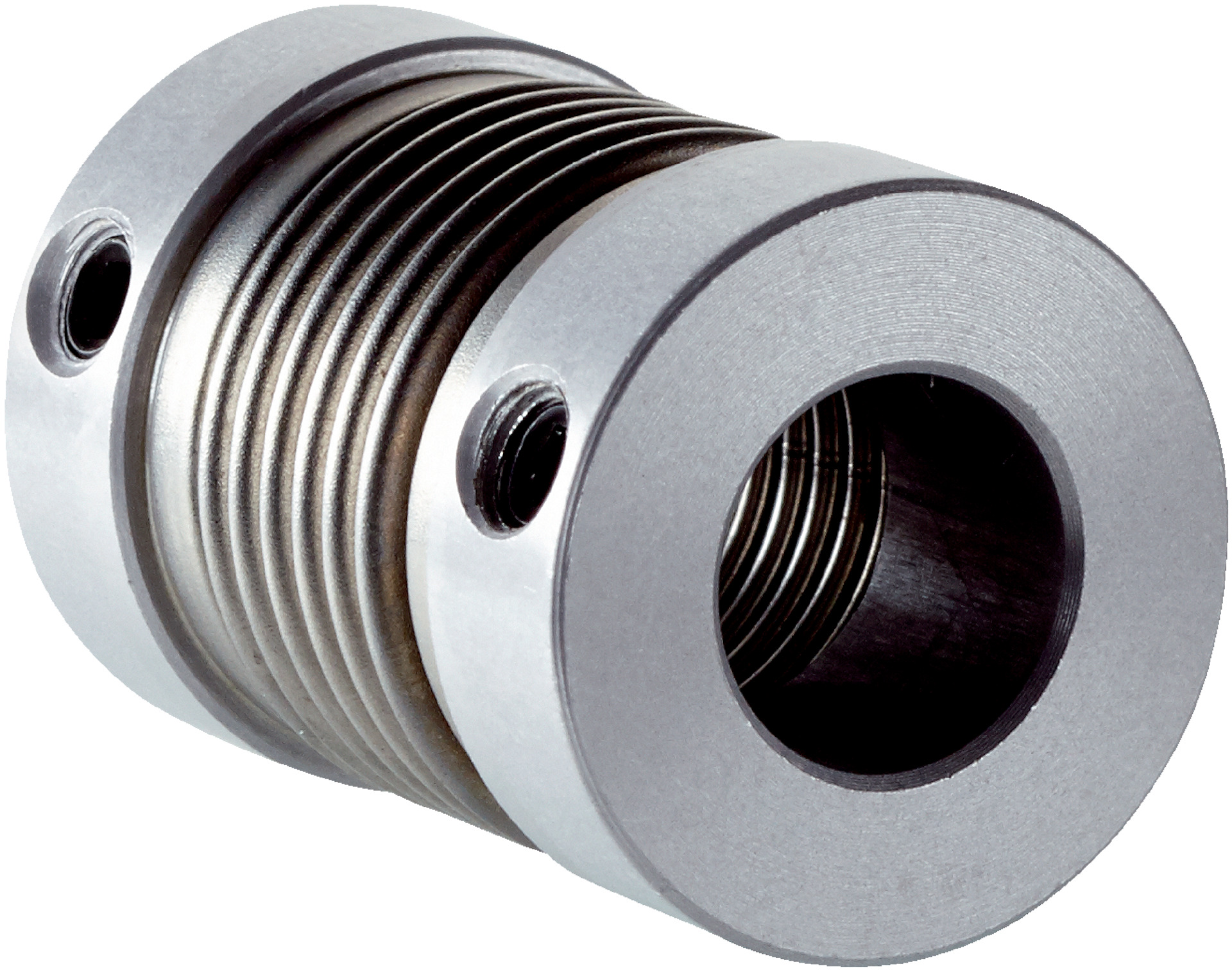

Bellows Shaft Coupling KUP-0610-BS | 6mm to 10mm Diameter | 10,000 RPM Max Speed | Stainless Steel | by SICK
The KUP-0610-BS bellows shaft coupling is designed for precision mechanical coupling applications, accommodating shaft diameters from 6 mm to 10 mm. With a maximum speed of 10,000 RPM and a robust stainless steel construction, it ensures reliable performance in industrial machinery and automation systems. Ideal for applications requiring flexible shaft connections, this coupling supports efficient power transmission while minimizing energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
- Maximum speed: 10,000 rpm
- Operating temperature range: -30 °C to +120 °C
- Maximum torque: 120 Ncm
- Material: Stainless steel bellows
- Fixing method: Two setscrews each
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Bellows coupling for shaft diameters 6 mm to 10 mm
- Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
- Maximum speed up to 10,000 rpm
- Temperature range from -30 °C to +120 °C
- Maximum torque of 120 Ncm
- Constructed with stainless steel bellows
- Fixed with two setscrews each for secure attachment
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and secure fixing.
Applications
- Industrial machinery shaft adaptation
- Precision mechanical coupling applications
- Automation and control systems requiring flexible shaft connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Supports efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KUP-0610-BS bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
