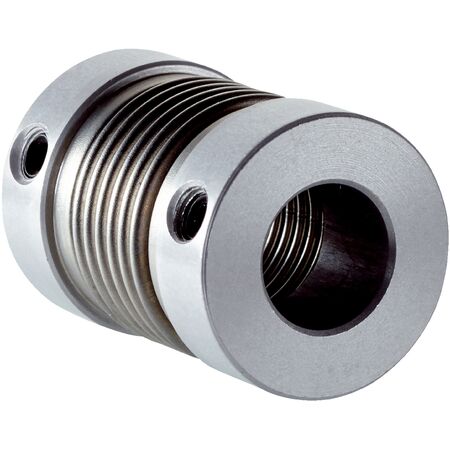

Bellows Shaft Coupling KUP-0610-BS 6mm to 10mm Diameter 10,000 RPM Max Speed SICK

BRAND: SICK
SKU: 2075377
$126.50 List price: $159.00
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-0610-BS bellows shaft coupling is designed for precision mechanical coupling applications, accommodating shaft diameters from 6 mm to 10 mm.
Technical Specifications
  • Shaft diameter: 6 mm / 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed: 10,000 rpm
  • Operating temperature range: -30 °C to +120 °C
  • Maximum torque: 120 Ncm
  • Material: Stainless steel bellows
  • Fixing method: Two setscrews each
  • Dimensions (H x L x W): 40mm x 60mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Bellows coupling for shaft diameters 6 mm to 10 mm
  • Maximum shaft offset: radial ±0.25 mm, axial ±0.4 mm, angular ±4°
  • Maximum speed up to 10,000 rpm
  • Temperature range from -30 °C to +120 °C
  • Maximum torque of 120 Ncm
  • Constructed with stainless steel bellows
  • Fixed with two setscrews each for secure attachment
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper alignment and secure fixing.
Applications
  • Industrial machinery shaft adaptation
  • Precision mechanical coupling applications
  • Automation and control systems requiring flexible shaft connections
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel construction reduces replacement frequency and waste
  • Supports efficient mechanical power transmission reducing energy loss
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK KUP-0610-BS bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
