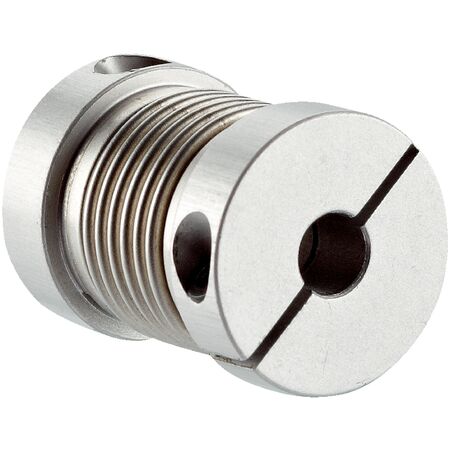

Bellows Shaft Coupling KUP-1010-B | 10 mm Diameter | 10,000 RPM | Stainless Steel & Aluminum | by SICK

BRAND: SICK
SKU: 5312983
$116.90 List price: $146.90
+ −
30 Days Return Delivery Options
The KUP-1010-B bellows shaft coupling is designed for precision mechanical drive systems, featuring a 10 mm shaft diameter and capable of handling maximum revolutions of 10,000 RPM. Built with durable stainless steel bellows and aluminum clamping hubs, it ensures reliable torque transmission and is ideal for industrial machinery and automation applications.
Technical Specifications
  • Shaft diameter: 10 mm / 10 mm
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum revolutions: 10,000 rpm
  • Operating temperature: -30° to +120 °C
  • Maximum torque: 120 Ncm
  • Material: stainless steel bellows, aluminum clamping hubs
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Bellows coupling for shaft diameter 10 mm/10 mm
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum revolutions: 10,000 rpm
  • Operating temperature range: -30° to +120 °C
  • Maximum torque: 120 Ncm
  • Constructed with stainless steel bellows and aluminum clamping hubs
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
  • Industrial machinery shaft adaptation
  • Precision mechanical drive systems
  • Automation and robotics shaft coupling
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel and aluminum materials increase product lifespan and reduce waste
  • Efficient torque transmission reduces energy loss in mechanical systems
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK KUP-1010-B bellows shaft coupling is available for immediate purchase, ideal for industrial and automation shaft coupling applications.
