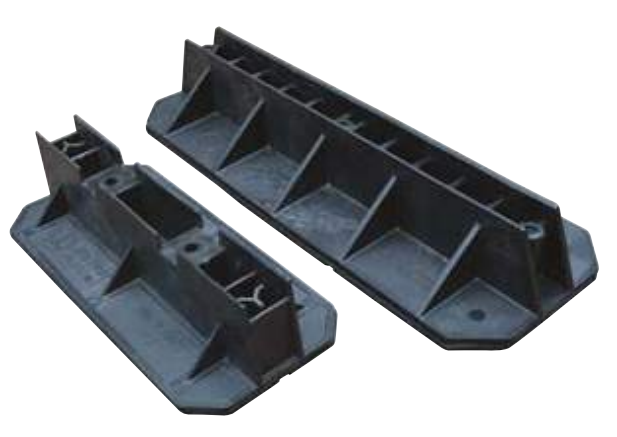

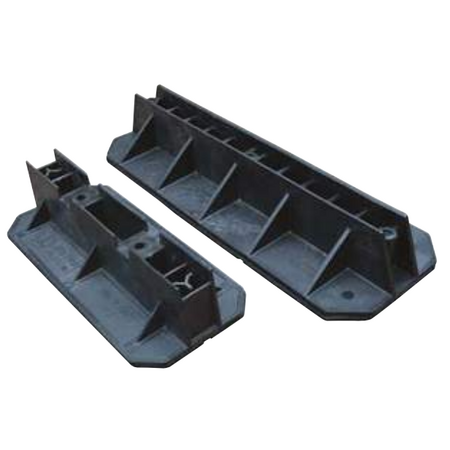

BF Multi-Foot 600mm Support Feet | Rigid Nylon & Rubber Mats | Quick Install | by Aspen Pumps
The BF Multi-Foot 600mm support feet are designed for reliable load distribution in HVAC and ductwork applications. Featuring a durable rigid nylon construction with adhered rubber mats, these feet ensure quick and easy installation while protecting roofing surfaces. Ideal for professional installations, they accept a full range of strut sizes and provide versatile mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Multi-Foot 600mm Support Feet | Rigid Nylon & Rubber Mats | Quick Install | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9655
Alternatively Known As: Multi Foot Support, Ductwork Support Feet, Nylon Support Feet, Strut Support Feet
Technical Specifications
- Length: 600 mm
- Width: 220 mm
- Height: 80 mm
- Weight: 11.7 kg per pack
- Maximum Load Capacity: 474 kg
- Material: Rigid nylon foot with adhered rubber mats
- Dimensions (H x L x W): 80mm x 600mm x 220mm
- Weight: 11.7 kg
Key Features
- Quick and easy install
- Rigid nylon foot for durability

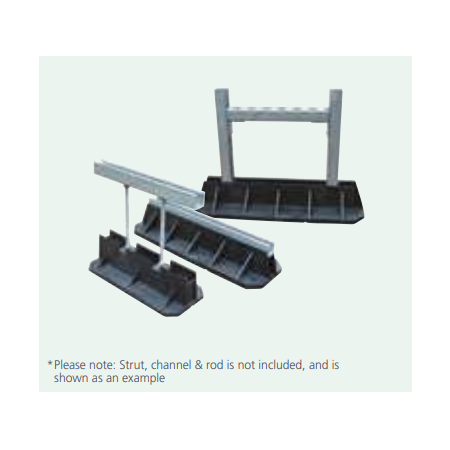

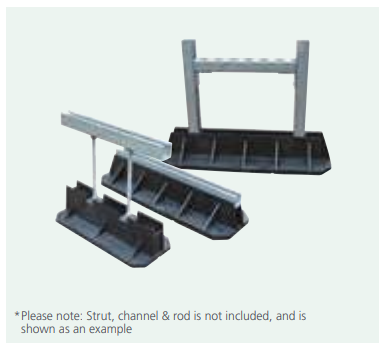

- Versatile application using channel, strut or threaded rod
- Accepts a full range of strut sizes
- Adhered rubber mats provide additional roof protection
- Boxed for convenience
Professional Installation Requirements
- Professional installation is recommended to ensure proper load distribution and secure mounting using appropriate channel, strut, or threaded rod systems.
Applications
- Support for large ductwork
- Load distribution in HVAC installations
- Mounting using channel, strut, or threaded rod
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Rubber mats protect roofing surfaces, preventing damage and extending roof life
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps BF Multi-Foot 600mm 3 Pack is available now for immediate purchase. Ideal for HVAC and ductwork support applications requiring reliable load distribution.
