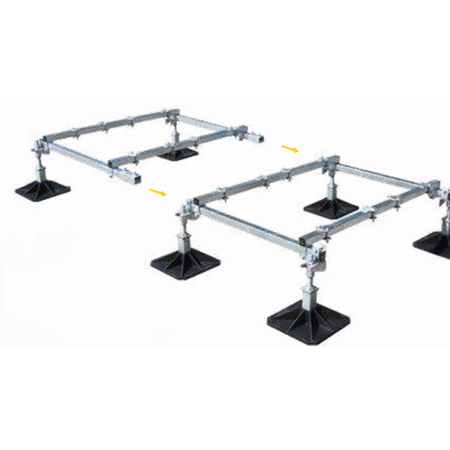

BF Multi Frame 1mt x 600mm Cross Bars | 305mm Feet for Stability | Adjustable Leg Assemblies | by Aspen Pumps
The BF Multi Frame 1mt x 600mm Cross Bars provide robust support for air conditioning units, featuring 305mm feet for enhanced stability and adjustable leg assemblies for height customization. Ideal for both residential and commercial HVAC installations, these cross bars are compatible with various Multi Frame configurations, ensuring flexible and reliable setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Multi Frame 1mt x 600mm Cross Bars | 305mm Feet for Stability | Adjustable Leg Assemblies | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9720-Narrow
Alternatively Known As: A/C Support Frame Cross Bars, Multi Frame Extension Bars, HVAC Support Frame
Technical Specifications
- Length: 1000 mm
- Width: 600 mm
- Height adjustable from 335 mm to 660 mm
- Weight: 40 kg
- Maximum load capacity: 500 kg
- 305mm feet for stability
- Adjustable leg assemblies
- Dimensions (H x L x W): 335mm x 1000mm x 600mm
- Weight: 40 kg
Key Features
- 305mm feet for stable support
- Compatible with any Multi Frame and Multi Frame XL of the same height
- Extendable from any side for flexible installation
- Adjustable leg assemblies for height customization
- Easy assembly with cross bars positioning onto end bars
- Supplied boxed with clamp kits
Professional Installation Requirements
- Professional installation by qualified HVAC or construction personnel is recommended to ensure structural integrity and compliance with local building codes.
Applications

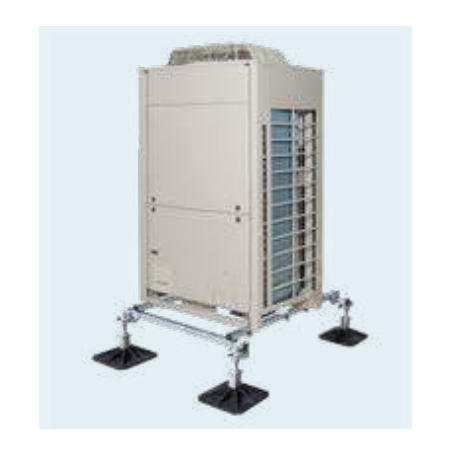

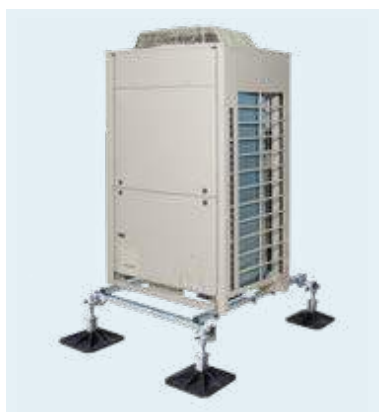

- Supports air conditioning units
- Suitable for various Multi Frame and Multi Frame XL configurations
- Ideal for residential and commercial HVAC installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Supports efficient HVAC installation contributing to energy savings
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen BF Multi Frame 1mt x 600mm Cross Bars are available for immediate purchase, ideal for flexible and robust air conditioning support frame installations.
