BF Multi Frame Extension 1mt | Adjustable Height | 500 kg Load Capacity | Easy Assembly | by Aspen Pumps

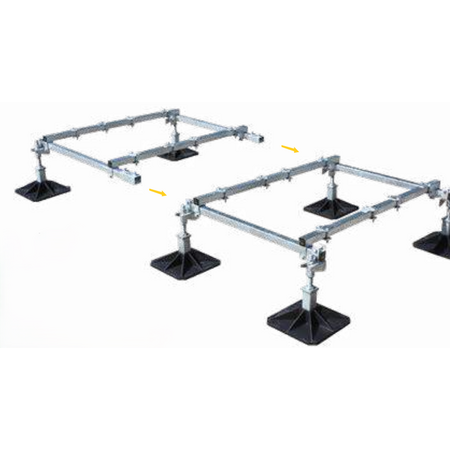

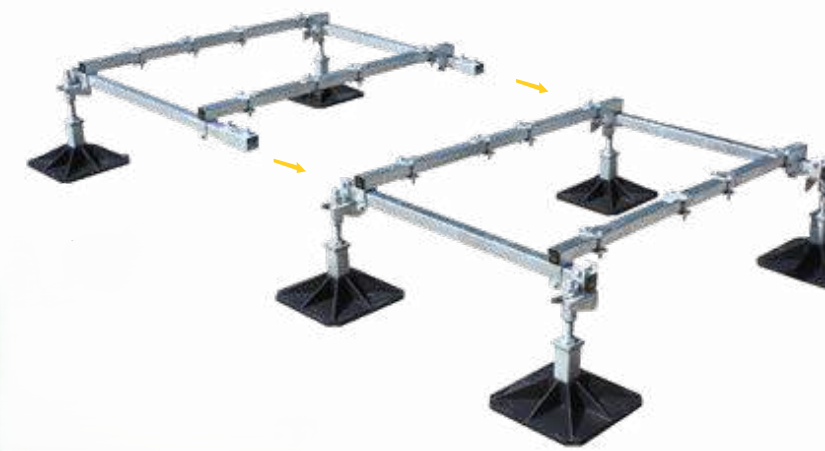

The BF Multi Frame Extension 1mt is designed for flexible HVAC installations, supporting Multi Frame and Multi Frame XL air conditioning units. With adjustable height and a robust 500 kg load capacity, this extension ensures stable support and easy assembly, making it ideal for both residential and commercial setups. Professional installation is recommended for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Multi Frame Extension 1mt | Adjustable Height | 500 kg Load Capacity | Easy Assembly | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9721
Alternatively Known As: Multi Frame Extension Kit, Multi Frame XL Extension, A/C Support Frame Extension
Technical Specifications
- Length: 1000 mm
- Width: 1200 mm
- Height adjustable from 335 mm to 440 mm
- Maximum load capacity: 500 kg
- Weight: 26 kg
- Includes clamp kits for secure assembly
- Dimensions (H x L x W): 335mm x 1000mm x 1200mm
- Weight: 26 kg
Key Features
- 305mm feet for stable support
- Mix and match any Multi Frame and Multi Frame XL of the same height
- Extendable from any side for flexible configuration
- Adjustable leg assemblies for height customization
- Easy to assemble with cross bars positioning onto end bars
- Supplied boxed with clamp kits for secure installation
Professional Installation Requirements
- Professional installation by qualified HVAC technicians or installers is recommended to ensure proper assembly and secure support of air conditioning units.
Applications

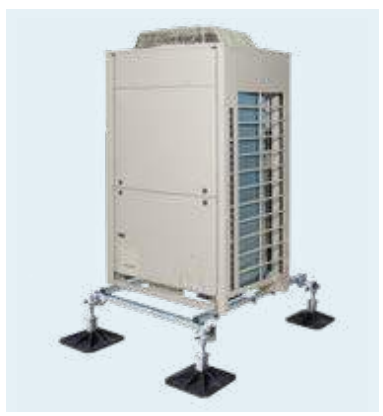

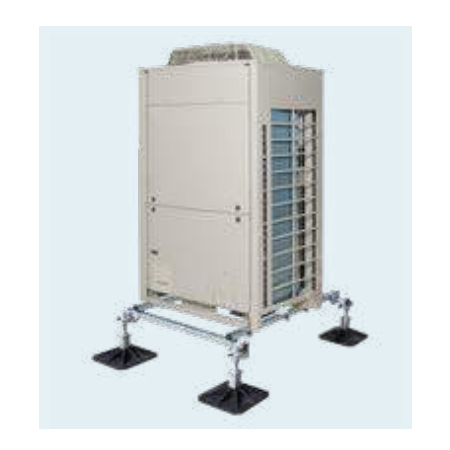

- Supports installation of Multi Frame and Multi Frame XL air conditioning units
- Suitable for residential and commercial HVAC setups requiring flexible frame extension
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Supports efficient HVAC system installation which can improve energy efficiency
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen BF Multi Frame Extension 1mt is available for immediate purchase, ideal for HVAC professionals and installers requiring flexible and robust air conditioning support solutions.
