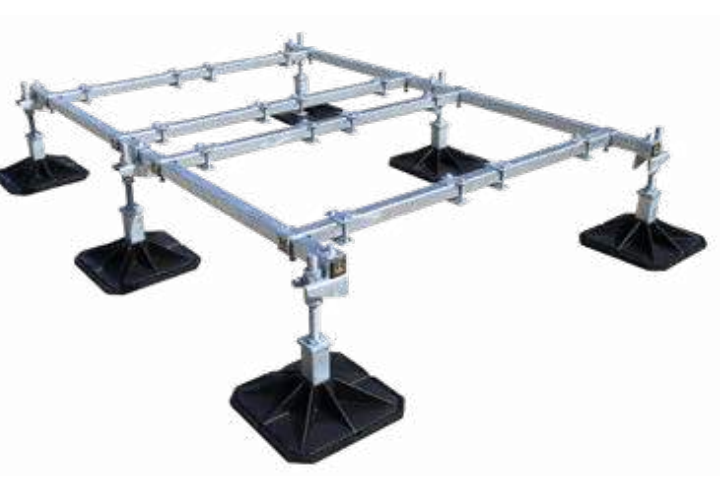

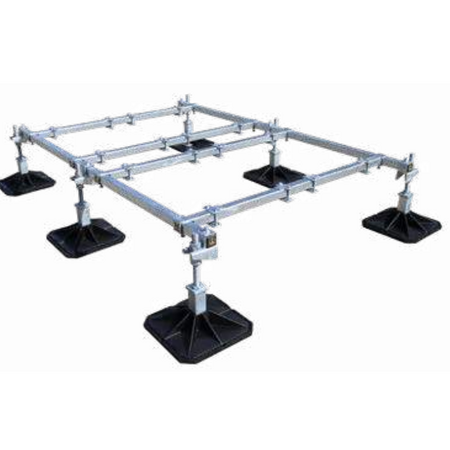

BF Standard Frame 2mt x 1.5mt Cross Bars | Adjustable Height | 800 kg Load Capacity | Easy Assembly | by Aspen Pumps
The BF Standard Frame 2mt x 1.5mt Cross Bars is designed for secure mounting of mini splits and VRF/VRV air conditioning units. With adjustable leg assemblies and a high load capacity of 800 kg, it’s perfect for both residential and commercial HVAC installations. This frame ensures compliance with structural standards, making it a reliable choice for HVAC professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BF Standard Frame 2mt x 1.5mt Cross Bars | Adjustable Height | 800 kg Load Capacity | Easy Assembly | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9443
Alternatively Known As: A/C Support Frame, Air Conditioner Mounting Frame, HVAC Support Frame, Mini Split Frame
Technical Specifications
- Frame Length: 2000 mm
- Frame Width: 1500 mm
- Height Adjustable: 290 - 400 mm
- Maximum Load Capacity: 800 kg
- Includes adjustable leg assemblies and clamp kits
- Dimensions (H x L x W): 290mm x 2000mm x 1500mm
- Weight: 72 kg
Key Features
- Adjustable leg assemblies for flexible installation heights
- Available in 3 lengths to suit different unit sizes
- Cross bars available in 1.2m or 1.5m lengths
- Simple to assemble with supplied clamp kits
- High load capacity up to 800 kg
Professional Installation Requirements
- Professional installation recommended to ensure secure mounting and compliance with structural standards.
Applications

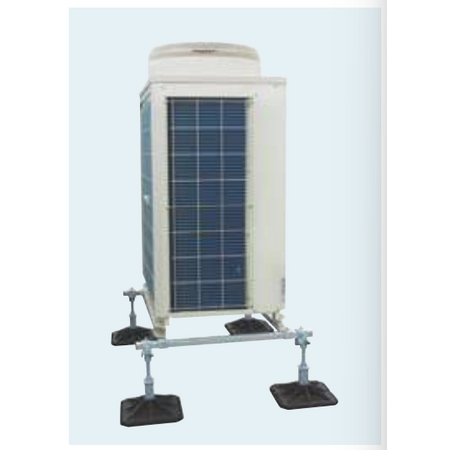

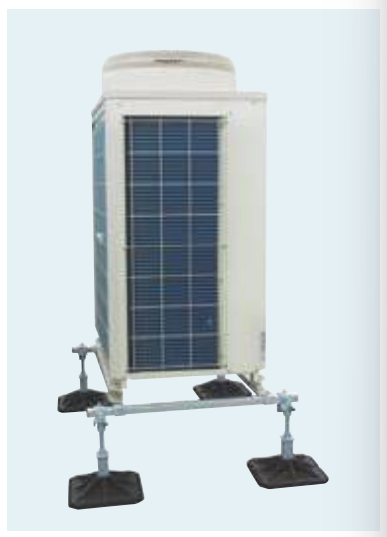

- Supports mini splits, VRF/VRV air conditioning units
- Suitable for residential and commercial HVAC installations
- Ideal for mounting air conditioning units securely
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Supports efficient HVAC system installation contributing to energy savings
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen BF Standard Frame 2m x 1.5m Cross Bars is available for immediate purchase, ideal for HVAC professionals and contractors requiring reliable A/C support solutions.
