Bi-Metal Cable Lug 300mm2 12mm Stud Cabac

BRAND: CABAC
SKU: BL300-12
$58.70 List price: $78.20
1 EA ($58.70 per EA)
+ −
30 Days Return Electricians Unlock Trade Access

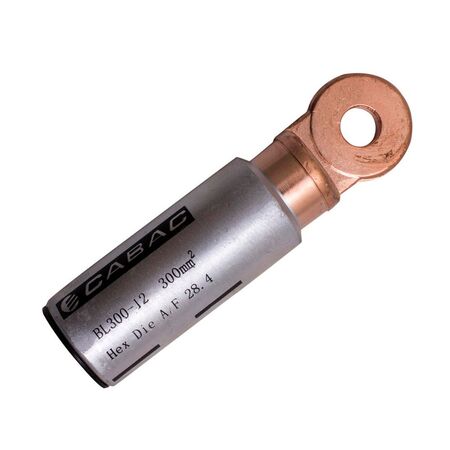

Cabac bi-metal cable lug, 300mm2, friction-welded aluminium barrel to copper palm. Ideal for Al cable to Cu stud terminations.
Technical Specifications
  • Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.9% pure
  • Tensile Strength: 110 MPa
  • Ductile Rating: 28%
  • Final Metal State: Fully Annealed including joint
  • Joining Method: Friction Welding (IEC standard)
  • Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
  • Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
  • Operating Temperature Range: -40°C to 100°C
  • Tooling: Interchangeable with CABAC, Utilux, and Burndy tooling
  • Dimensions (H x L x W): 15mm x 120mm x 40mm
  • Weight: 0.15 kg
Key Features
  • Manufactured using friction welding process producing a very strong electrically sound joint
  • Suitable for aluminium conductor and copper terminals or busbar
  • Crimp from palm end to force compound into conductor strands
  • Crimping compound in barrel and sealed with cap
  • Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
  • Should be installed by a qualified electrician using standard Australian aluminium hexagonal crimping dies to ensure proper crimping and electrical connection.
Applications
  • Electrical power connectivity for stranded sector and circular stranded aluminium conductors
  • Suitable for use with copper terminals or busbars in electrical installations
  • Ideal for industrial and commercial electrical wiring and power distribution
Standards & Compliance
  • Complies with AS/NZS 4325 Part 1 for electrical lugs and connectors
Environmental Benefits
  • Friction welding process reduces the need for additional materials and enhances durability, minimizing waste
  • High-quality materials ensure long service life, reducing replacement frequency and environmental impact
Warranty Information

Standard manufacturer warranty applies; please refer to Cabac for specific warranty terms.

Available Now

The Cabac Bi-Metal Lug 300mm2-Std12mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper connections.
