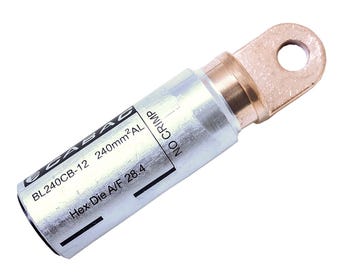

Bi-Metal Circuit Breaker Lug 240mm² | 10mm Stud | Friction Welded | Durable Design by Cabac
Cabac Bi-Metal Circuit Breaker Lug 240mm² with 10mm Stud offers a strong, reliable connection for aluminium and copper conductors, ideal for circuit breaker terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Circ Break Lug 240mm2 10mm Stud
Brand: Cabac
SKU: BL240CB-10
Alternatively Known As: Bi-Metal Lug, Circuit Breaker Lug, Bi-Metal Connector, Electrical Lug 240mm2
Technical Specifications
- Conductor Size: 240mm²
- Stud Size: 10mm
- Manufacturing Process: Friction welding
- Material Compatibility: Aluminium and copper conductors
- Crimping: Compound in barrel sealed with cap
- Crimping Positions: AF marked on barrel
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper circuit breaker terminals
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical power connectivity for aluminium and copper conductors
- Suitable for circuit breaker terminals in residential, commercial, and industrial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Bi-Metal Circuit Breaker Lug 240mm² 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity in residential, commercial, and industrial applications.
