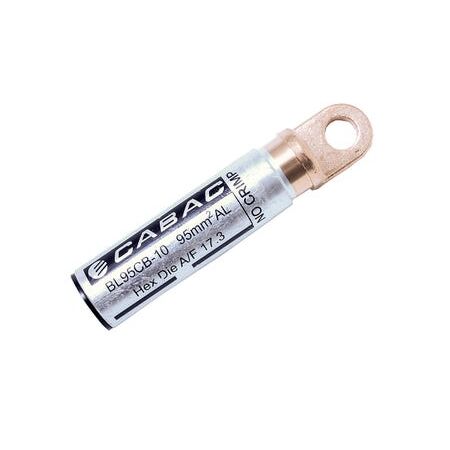

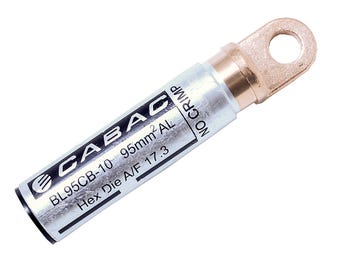

Bi-Metal Circuit Breaker Lug 95mm² | 8mm Stud | Friction Welded & Sealed Crimping by Cabac
Cabac Bi-Metal Circuit Breaker Lug 95mm2 8mm Stud is designed for strong, reliable electrical connections between aluminium conductors and copper circuit breaker terminals, featuring friction welding and sealed crimping compound.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Circ Break Lug 95mm2 8mm Stud
Brand: Cabac
SKU: BL95CB-8
Alternatively Known As: Bi-Metal Lug, Circuit Breaker Lug, Aluminium to Copper Lug, Electrical Lug 95mm2
Technical Specifications
- Conductor Size: 95mm²
- Stud Size: 8mm
- Manufacturing Process: Friction welding
- Material Compatibility: Aluminium conductor and copper circuit breaker terminals
- Crimping: Compound in barrel sealed with cap
- Crimping Positions: AF clearly marked on barrel
- Dimensions (H x L x W): 10mm x 95mm x 30mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper circuit breaker terminals
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical power connectivity for aluminium and copper circuit breaker terminals
- Suitable for industrial and commercial electrical installations
- Used in electrical panels and switchboards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Bi-Metal Circuit Breaker Lug 95mm2 8mm Stud is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial settings.
