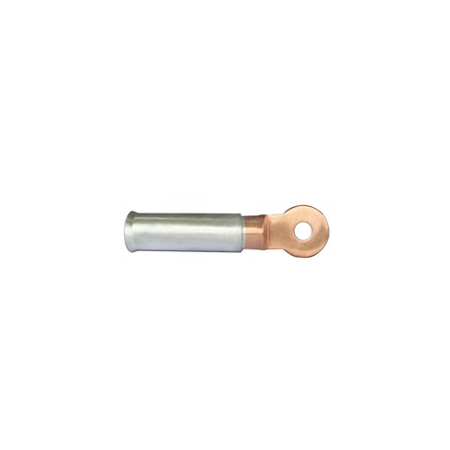

Bi Metal Copper & Aluminium Lugs 120mm² x 10mm | High Conductivity | IEC Compliant | Durable by United Manufacturers Australia
Bi Metal Copper & Aluminium Lugs with 120mm² x 10mm size and high conductivity—ideal for reliable electrical connections in industrial and commercial settings. Built for durability and compliance with IEC standards, ensuring secure and efficient power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi Metal Copper & Aluminium Lugs 120mm² x 10mm | High Conductivity | IEC Compliant | Durable by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM12010
Alternatively Known As: Bi Metal Crimp Lugs, Copper Aluminium Lugs, Bi Metal Electrical Lugs, Copper Aluminium Connectors
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 120mm² x 10mm
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from high quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and Aluminium Lugs and Connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High conductivity reduces energy loss in electrical systems
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 120mm sq-10mm by UMA are available for immediate purchase, ideal for electrical and industrial applications.
