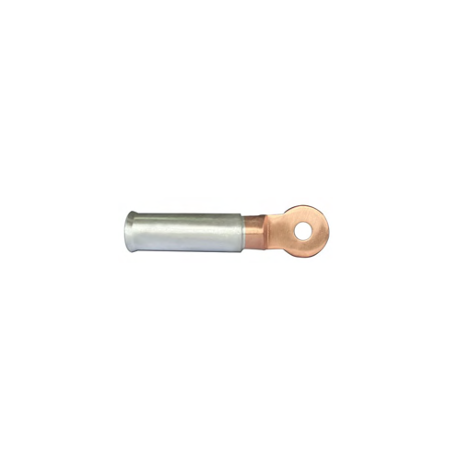

Bi-Metal Copper & Aluminium Lugs 300mm² | High-Quality Material | -55°C to +100°C Operating Range | IEC Compliant by United Manufacturers Australia
Bi-metal copper and aluminium lugs with a 300mm² size and operating temperature range of -55°C to +100°C—ideal for reliable electrical connections in industrial and commercial applications. Built for durability and compliance with IEC standards, these lugs ensure efficient conductivity and reduced energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Copper & Aluminium Lugs 300mm² | High-Quality Material | -55°C to +100°C Operating Range | IEC Compliant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM300BL
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Electrical Crimp Lug, Bi-Metallic Lug
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 300mm² sq blank
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from high-quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and Aluminium Lugs and Connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
Available for immediate purchase, ideal for electrical and industrial applications requiring reliable bi-metallic lugs.
