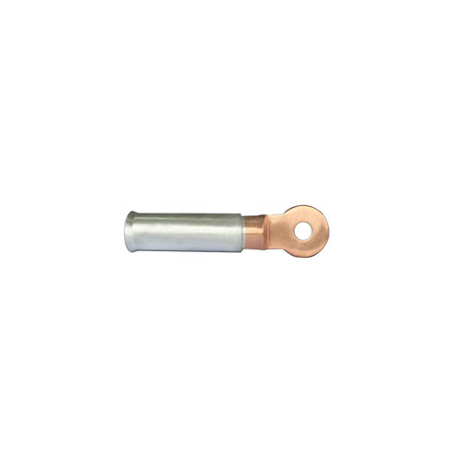

Bi Metal Copper & Aluminium Lugs 300mm² x 10mm | -55°C to +100°C | IEC Compliant | Durable Design by United Manufacturers Australia
Bi metal copper and aluminium lugs with a size of 300mm² x 10mm, operating temperature range of -55°C to +100°C—ideal for reliable electrical connections. Built for industrial and commercial applications, these lugs ensure efficient conductivity and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi Metal Copper & Aluminium Lugs 300mm² x 10mm | -55°C to +100°C | IEC Compliant | Durable Design by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM30010
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Bi Metal Electrical Lug, Copper Aluminium Connector
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 300mm² x 10mm
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Made from high quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Power distribution and grounding in industrial and commercial electrical systems
- Suitable for use in copper to aluminium cable terminations
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and aluminium electrical connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 300mm sq-10mm by UMA are available for immediate purchase, ideal for electrical and industrial applications requiring reliable bi-metallic connections.
