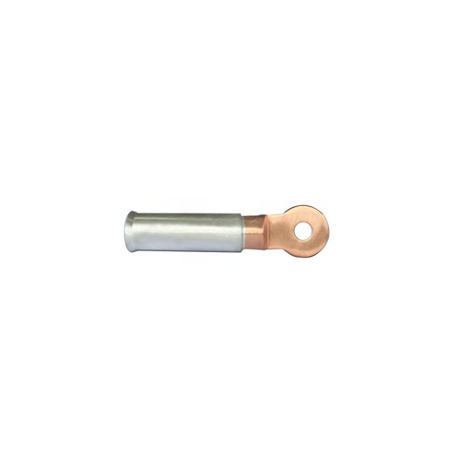

Bi Metal Copper & Aluminium Lugs 400mm² x 12mm | High Quality Materials | Wide Operating Temperature | IEC Compliant by United Manufacturers Australia
Bi Metal Copper & Aluminium Lugs with 400mm² size and 12mm hole—ideal for reliable electrical connections in industrial and commercial settings. Built for durability and efficiency, these lugs feature high-quality aluminium and copper, ensuring optimal conductivity and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi Metal Copper & Aluminium Lugs 400mm² x 12mm | High Quality Materials | Wide Operating Temperature | IEC Compliant by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM40012
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Electrical Crimp Lug, Bi-Metallic Lug
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 400mm² x 12mm
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from highest quality Aluminium (99.6%) and Copper (99.9%)
- Wide operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring reliable bi-metallic lugs
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and Aluminium Lugs and Connectors
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- High-quality metals ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per UMA standard policy.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 400mm sq-12mm by UMA are available for immediate purchase, ideal for electrical and industrial applications.
