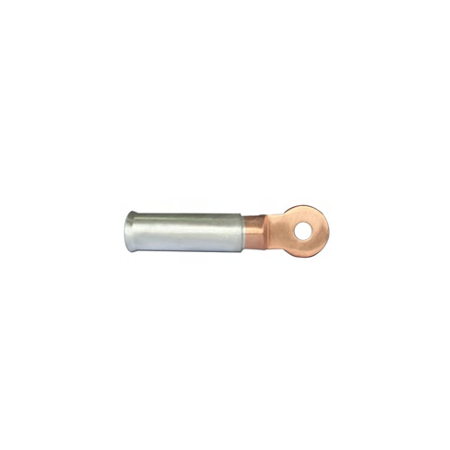

Bi Metal Copper & Aluminium Lugs 500mm² | -55°C to +100°C | IEC Compliant | 10mm Hole by United Manufacturers Australia
Bi Metal Copper & Aluminium Lugs with 500mm² capacity and 10mm hole—ideal for electrical connections in industrial and commercial settings. Built for durability and efficiency, these lugs comply with IEC standards and ensure secure terminations for copper to aluminium cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi Metal Copper & Aluminium Lugs 500mm² | -55°C to +100°C | IEC Compliant | 10mm Hole by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMBM50010
Alternatively Known As: Bi Metal Crimp Lug, Copper Aluminium Lug, Bi Metal Electrical Lug, Copper to Aluminium Connector
Technical Specifications
- Material: Aluminium (99.6%) and Copper (99.9%)
- Size: 500mm² cable capacity with 10mm hole
- Operating Temperature: -55°C to +100°C
- Standards: IEC 62238-2003, AS/NZS 4325-1:1995 approved
- Dimensions (H x L x W): 50mm x 100mm x 10mm
- Weight: 0.5 kg
Key Features
- Made from high quality Aluminium (99.6%) and Copper (99.9%)
- Operating temperature range from -55°C to +100°C
- Complies with IEC 62238-2003 and AS/NZS 4325-1:1995 standards
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring bi-metallic lugs for copper to aluminium cable termination
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- AS/NZS 4325-1:1995 – Copper and Aluminium Lugs and Connectors
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Bell Mouth Bi Metal Copper & Aluminium Lugs 500mm sq-10mm by United Manufacturers Australia is available for immediate purchase, ideal for electrical and industrial applications.
