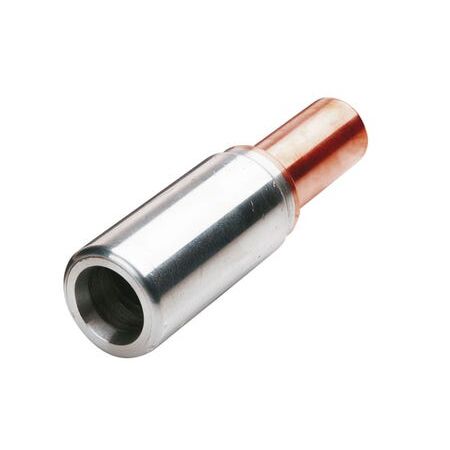

Bi-Metal Crimp Link 185mm Aluminium to 35mm Copper | Friction Welded | Corrosion Resistant by Cabac
The Cabac 3I-Metal Link 185Al To 35Copper is a high-quality bi-metal crimp link designed for connecting stranded aluminium cables to stranded copper cables, ensuring strong, corrosion-resistant electrical joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3I-Metal Link 185Al To 35Copper
Brand: Cabac
SKU: BLK185/35
Alternatively Known As: Bi-Metal Crimp Link, Aluminium to Copper Link, Bi-Metal Electrical Connector, Aluminium Copper Cable Link
Technical Specifications
- Material: 99.6% pure aluminium and 99.9% pure copper
- Length: 185mm aluminium side
- Copper side: 35mm
- Manufactured to Australian dimensions
- Friction welded for strong, electrically sound joint
- Barrels coated with jointing compound
- Individually packed in plastic bags
- Dimensions (H x L x W): 10mm x 185mm x 35mm
- Weight: 0.1 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Prevents electrolysis between aluminium and copper connections
- Designed to be crimped with CABAC and MSS Power tool dies
- Compatible with standard hex crimp dies
- Barrels coated with jointing compound for enhanced conductivity and protection
- Individually packed in plastic bags for protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections between stranded sector and circular stranded aluminium cables to stranded copper cables
- Suitable for power distribution and electrical installations requiring bi-metal links
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents electrolysis and corrosion, extending the lifespan of electrical connections
- Reduces need for frequent replacements, minimizing material waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac 3I-Metal Link 185Al To 35Copper is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable aluminium to copper cable connections.
