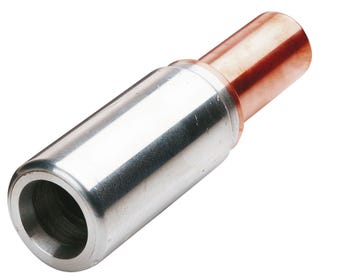

Bi-Metal Crimp Link 25mm² Aluminium to 16mm² Copper | Friction Welded | Enhanced Connection Quality by Cabac
Cabac Bi-Metal Link 25Al To 16Copper is a high-quality friction welded crimp link designed for connecting stranded aluminium to stranded copper cables, ensuring strong and reliable electrical joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

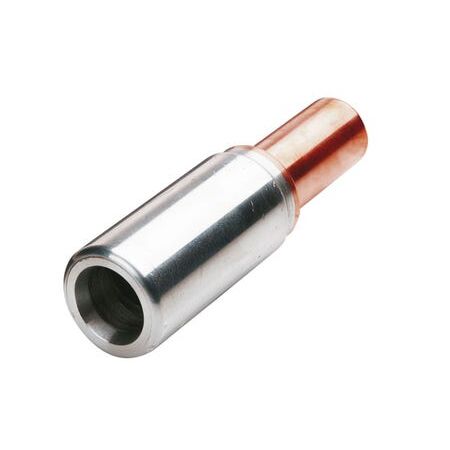

Product Name/Title: Bi-Metal Link 25Al To 16Copper
Brand: Cabac
SKU: BLK25/16
Alternatively Known As: Bi-metal crimp link, Aluminium to copper cable link, Bi-metal cable connector, Electrical crimp link
Technical Specifications
- Nominal Conductor Size: 25mm² Aluminium to 16mm² Copper
- Stranding Number/Diameter Al/Cu: 19/1.35mm Aluminium, 7/1.70mm Copper
- Material Purity: Aluminium 99.6%, Copper 99.9%
- Manufacturing Process: Friction welded
- Coating: Barrels coated with jointing compound
- Dimensions (H x L x W): 10mm x 100mm x 60mm
- Weight: 0.05 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Links circular or sector stranded aluminium cable to circular copper cable
- Designed to be crimped with CABAC and MSS power tool dies
- Compatible with standard hex crimp dies
- Barrels coated with jointing compound for enhanced connection quality
- Individually packed in plastic bags for protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium to stranded copper cable connections
- Suitable for use in electrical installations requiring reliable bi-metal crimp links
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Bi-Metal Link 25Al To 16Copper is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper cable connections.
