Bi-Metal Electrical Lug 400mm² | 10mm Hole Size | Friction Welded | Durable Design by Cabac

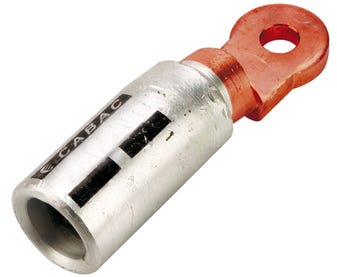

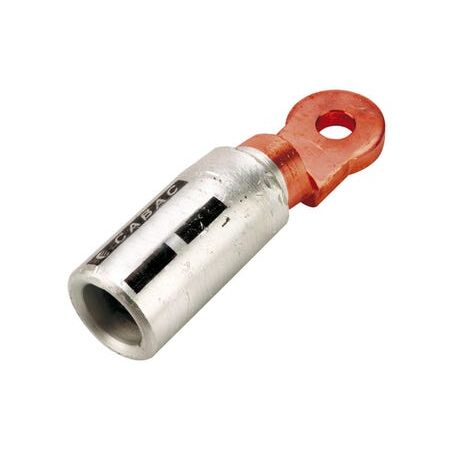

Cabac Bi-Metal Lug 400mm2-Std10mm is a high-quality electrical lug designed for strong, reliable connections between aluminium conductors and copper terminals or busbars, manufactured using friction welding for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 400mm2-Std10mm
Brand: Cabac
SKU: BL400-10
Alternatively Known As: Bi-Metal Electrical Lug, Aluminium to Copper Lug, Friction Welded Lug
Technical Specifications
- Conductor Size: 400mm²
- Standard Hole Size: 10mm
- Manufacturing Process: Friction welding
- Suitable for: Aluminium conductor and copper terminals or busbar
- Crimping: From palm end to force compound into conductor strands
- Sealed with crimping compound and cap
- Crimping positions clearly marked on barrel
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.3 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity for aluminium conductors and copper terminals or busbars
- Suitable for industrial and commercial electrical installations
- Used in electrical wiring and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Bi-Metal Lug 400mm2-Std10mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
