Bi-Metal Electrical Lug 500mm² | 10mm Hole Size | Friction Welded | Durable by Cabac

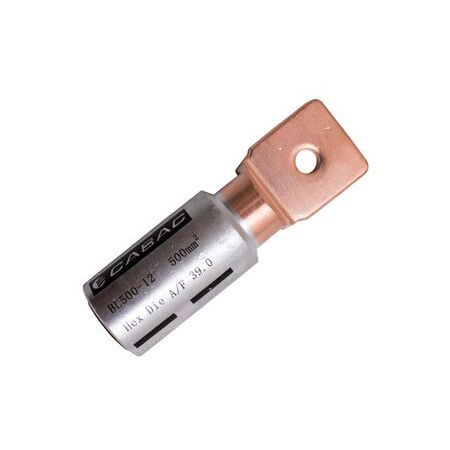

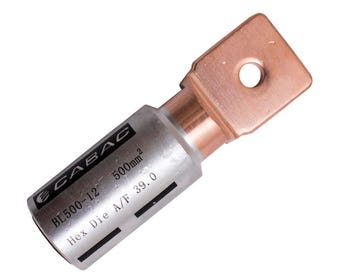

Cabac Bi-Metal Lug 500mm2-Std10mm is a high-quality electrical lug manufactured using friction welding for strong, reliable connections between aluminium conductors and copper terminals or busbars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bi-Metal Lug 500mm2-Std10mm
Brand: Cabac
SKU: BL500-10
Alternatively Known As: Bi-Metal Electrical Lug, Aluminium to Copper Lug, Friction Welded Lug
Technical Specifications
- Conductor Size: 500mm²
- Standard Hole Size: 10mm
- Manufacturing Process: Friction welding
- Suitable for: Aluminium conductor and copper terminals or busbar
- Crimping: From palm end with compound sealed in barrel
- Crimping Positions: AF, clearly marked on barrel
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.3 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Suitable for aluminium conductor and copper terminals or busbar
- Crimp from palm end to force compound into conductor strands
- Crimping compound in barrel and sealed with cap
- Crimping positions, AF, clearly marked on barrel
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for aluminium conductors and copper terminals or busbars
- Industrial and commercial electrical installations requiring strong, reliable lugs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical connection reduces energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Bi-Metal Lug 500mm2-Std10mm is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring durable and reliable lugs.
