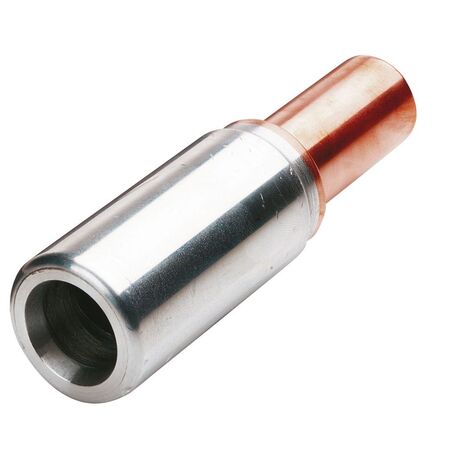

Bi-Metal Link 185AL to 120CU | Friction Welded | Prevents Electrolysis | Coated for Protection | @Each of 1 | by Cabac
The Bi-Metal Link 185AL to 120CU is designed for reliable electrical power connectivity between stranded aluminium and copper cables. Manufactured using a friction welding process, it ensures a strong, electrically sound joint while preventing electrolysis. Ideal for industrial, commercial, and residential applications, this connector is individually packed for protection and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure aluminium and 99.9% pure copper
- Manufacturing process: Friction welded
- Compatible cable sizes: 185mm aluminium to 120mm copper
- Coated with jointing compound for enhanced conductivity and protection
- Individually packed for protection
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Prevents electrolysis between aluminium and copper conductors
- Compatible with CABAC and MSS power tool dies for crimping
- Can be crimped with standard hex dies
- Individually packed in plastic bags for protection
- Made to Australian dimensions
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium to stranded copper cables
- Suitable for electrical installations requiring reliable bi-metal connections
- Used in industrial, commercial, and residential electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents corrosion and electrolysis, extending the lifespan of electrical connections
- Durable materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Link 185AL to 120CU is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper cable connections.
