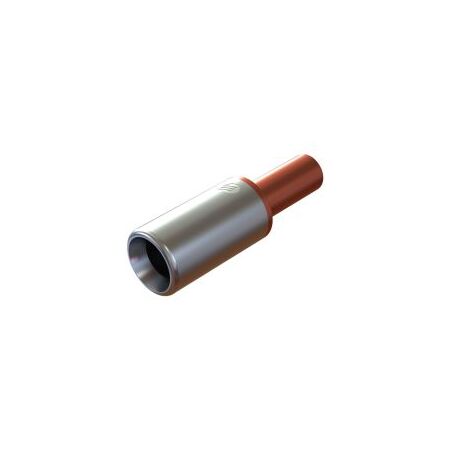

Bi-Metal Link 240mm² Aluminium to 35mm² Copper Cabac

BRAND: CABAC
SKU: BLK240/35
$133.90 List price: $178.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Bi-Metal Link features a 240mm² aluminium barrel and a 35mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.

Alternatively Known As: Aluminium to Copper Bi-Metal Link, Bi-Metal Cable Link, Aluminium-Copper Reducing Link, CABAC BLK240/35

Technical Specifications
  • Large-End Conductor Size: 240mm² aluminium
  • Small-End Conductor Size: 35mm² copper
  • Conductor Type: Round aluminium to circular copper
  • Material: Aluminium and copper bi-metal construction
  • Joining Method: Friction welding
  • Aluminium Purity: 99.6%
  • Copper Purity: 99.9%
  • Aluminium Barrel: Pre-filled with jointing compound to reduce oxidation
  • Large-End Hex Across Flats: 28.4mm
  • Small-End Hex Across Flats: 9.2mm
  • Crimping: CABAC or MSS Power tools with compatible aluminium and copper dies
  • Recommended Aluminium Crimp Die: DA240/300 or equivalent
  • Recommended Copper Crimp Die: D35CU or equivalent
  • Aluminium Crimps: 2
  • Copper Crimps: 1
  • Published Weight: Not listed; weight field is an estimate based on catalogue dimensions and material construction
  • Dimensions (H x L x W): 35mm x 130mm x 35mm
  • Weight: 0.35 kg
Key Features
  • Joins 240mm² aluminium cable to 35mm² copper cable
  • Friction-welded aluminium-to-copper transition reduces the risk of electrolysis at the dissimilar-metal joint
  • Chemically treated barrel helps reduce contact resistance and corrosion
  • Pre-filled aluminium barrel jointing compound helps disrupt oxide formation
  • Designed for crimp installation using standard Australian tooling
  • Suitable for electrical power connectivity and cable jointing applications
  • Manufactured to Australian cable accessory dimensional requirements
Professional Installation Requirements
  • Installation must be performed by a licensed or suitably qualified electrician on isolated and de-energised cables. Use the specified CABAC crimping tools and dies, follow the manufacturer's crimp sequence, and install in accordance with AS/NZS 4325.1 and applicable wiring rules.
Applications
  • Joining aluminium distribution cable to copper cable
  • Electrical power distribution installations
  • Underground and industrial cable jointing
  • Transition connections between aluminium conductors and copper equipment or cable sections
Standards & Compliance
  • AS/NZS 4325.1:1995, Compression and mechanical connectors for power cables with copper or aluminium conductors, Part 1
Environmental Benefits
  • Aluminium and copper components are recyclable at end of service life
  • Friction-welded construction and corrosion-resistant treatment can extend connection service life and reduce replacement waste
  • The bi-metal transition enables the use of aluminium cable where suitable, potentially reducing conductor material mass compared with equivalent copper cable installations
Warranty Information

CABAC's general warranty provides repair or replacement for defective goods for 12 months from the date of purchase where no product-specific warranty is stated. Warranty excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
