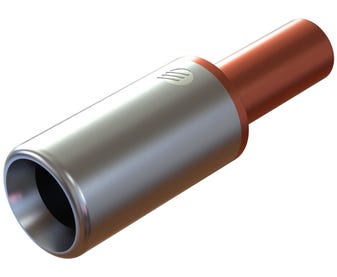

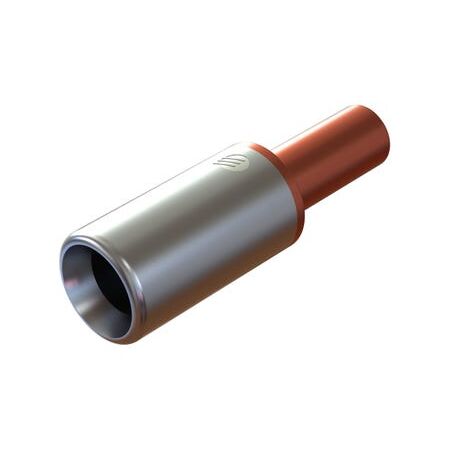

Bi-Metal Link 300mm² Aluminium to 35mm² Copper Cabac
Cabac Bi-Metal Link features a 300mm² aluminium barrel and a 35mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: BLK300/35, BLK300-35, BLK300-35BM, Aluminium-to-Copper Bi-Metal Link, Bi-Metal Reducing Crimp Link
Technical Specifications
- Aluminium Conductor Size: 300 mm²
- Copper Conductor Size: 35 mm²
- Material: High-purity aluminium and copper
- Joint Construction: Friction-welded aluminium-to-copper connection
- Aluminium Crimp Die: HT-240/300AL or equivalent 28.4 mm hex die
- Copper Crimp Die: HT130-C-35 or equivalent 9.2 mm hex die
- Aluminium Crimps: 2
- Copper Crimps: 1
- Unit of Measure: Each
- Dimensions (H x L x W): 35mm x 130mm x 35mm
- Weight: 0.1 kg
Key Features
- Joins 300 mm² aluminium cable to 35 mm² copper cable
- Friction-welded bi-metal joint provides a strong electrical connection
- Designed to minimise electrolysis between dissimilar metals
- Suitable for circular or sector-stranded aluminium cable to circular copper cable
- Crimpable using standard Australian hexagonal tooling
- Suitable for power distribution and cable jointing applications
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician using the specified CABAC or equivalent calibrated crimping tooling. Conductor preparation, die selection and crimp positioning must follow the manufacturer's instructions and applicable wiring requirements.
Applications
- Joining aluminium power cable to copper cable
- Low-voltage power distribution systems
- Underground electrical cable jointing
- Switchboard, transformer and distribution equipment connections
Standards & Compliance
- AS/NZS 4325.1:1995 – compression and mechanical connectors for power cables, as applicable to the connector design and installation
Environmental Benefits
- Aluminium and copper components are recyclable at end of service life
- Friction-welded construction helps reduce electrolysis-related failure and replacement waste
- Durable metal construction can support extended service life when correctly installed
Warranty Information
CABAC's standard warranty provides a 12-month warranty from the date of purchase where no specific product warranty is stated. Warranty excludes misuse, neglect and incorrect installation.
Available Now
Available through CABAC and authorised Australian electrical distributors.
