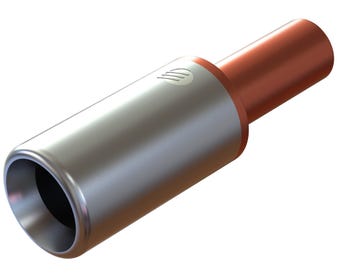

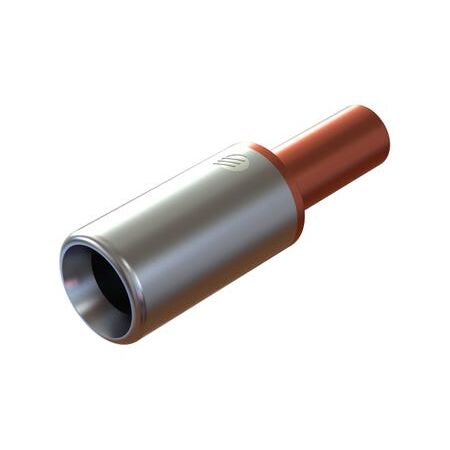

Bi-Metal Link 400mm² Aluminium to 35mm² Copper Cabac
Cabac Bi-Metal Link features a 400mm² aluminium barrel and a 35mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Link, Aluminium-to-Copper Reducing Link, Bi-Metal Crimp Link, CABAC BLK400/35
Technical Specifications
- Aluminium Cable Size: 400 mm²
- Copper Cable Size: 35 mm²
- Material: 99.6% pure aluminium and 99.9% pure copper
- Joint Construction: Friction-welded aluminium-to-copper joint
- Application: Circular or sector-stranded aluminium to circular-stranded copper cable
- Aluminium Crimp Die: DAL400/500, 30-ton crimp
- Copper Crimp Die: D35CU, 12-ton crimp
- Aluminium Hex Across Flats: 39 mm
- Copper Hex Across Flats: 9.2 mm
- Packaging Unit: 1 each
- Dimensions (H x L x W): 47mm x 155mm x 47mm
- Weight: 0.4 kg
Key Features
- Joins aluminium and copper conductors in a single inline connection
- Friction-welded joint provides mechanical integrity and electrical continuity
- Designed to minimise electrolysis between dissimilar metals
- Suitable for circular and sector-stranded aluminium cable
- Made to Australian metric cable dimensions
- Compatible with CABAC and MSS power crimping tools and dies
- Barrels supplied with jointing compound
- Individually packed in a plastic bag
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician using the specified CABAC or equivalent calibrated tooling and dies. Follow the cable manufacturer's preparation instructions and applicable electrical installation requirements.
Applications
- Low-voltage power cable jointing
- Aluminium-to-copper cable transitions
- Electrical distribution networks
- Commercial and industrial switchboard connections
- Utility and underground power cable installations
Standards & Compliance
- AS/NZS 4325.1:1995 – applicable Australian/New Zealand standard for compression and mechanical connectors for power cables; confirm project-specific certification and installation requirements before use
Environmental Benefits
- Aluminium and copper are highly recyclable metals
- Friction-welded construction helps extend service life and reduce premature replacement waste
- Provides a durable transition between aluminium and copper conductors, reducing the likelihood of corrosion-related failures
Warranty Information
CABAC's general warranty provides repair or replacement for defective goods, subject to its terms, with products generally covered by a 12-month warranty from the date of purchase unless another warranty is stated. Misuse and incorrect installation are excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
