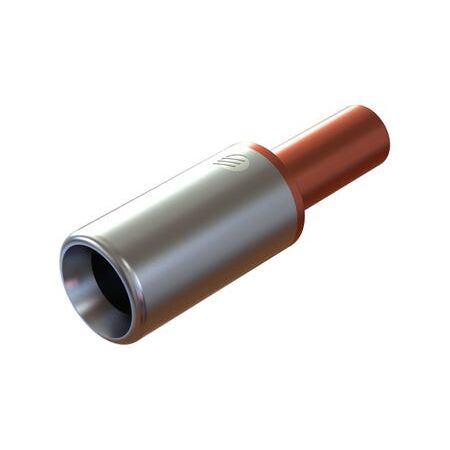

Bi-Metal Link 400mm² Aluminium to 50mm² Copper Cabac

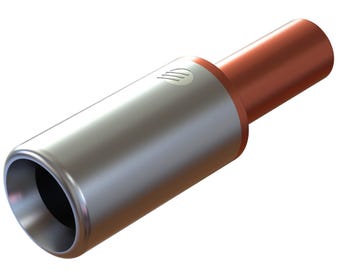

Cabac Bi-Metal Link features a 400mm² aluminium barrel and a 50mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bi-Metal Cable Link, Aluminium-to-Copper Reducing Link, Bi-Metal Crimp Link, BLK400/50
Technical Specifications
- Aluminium Cable Size: 400mm²
- Copper Cable Size: 50mm²
- Material: 99.6% pure aluminium and 99.9% pure copper
- Joining Method: Friction welding
- Aluminium Crimp Die: DAL400/500, 30T crimp
- Copper Crimp Die: D50CU, 12T crimp
- Aluminium Hex Die Size: 39mm
- Copper Hex Die Size: 10.4mm
- Aluminium Crimps: 2
- Copper Crimps: 1
- Packaging Unit: 1 each
- Dimensions (H x L x W): 47mm x 155mm x 47mm
- Weight: 0.3 kg
Key Features
- Provides a direct transition between aluminium and copper conductors
- Friction-welded aluminium-to-copper joint helps prevent electrolytic corrosion at the material interface
- Designed for solid or standard sector aluminium cable to circular copper cable
- Compatible with CABAC and MSS Power crimping tools and dies
- Manufactured to Australian cable dimensions
- Suitable for high-current electrical power connectivity applications
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor using the specified CABAC or MSS Power crimping equipment, dies and crimp sequence. Follow the manufacturer's installation instructions and applicable wiring regulations.
Applications
- Joining 400mm² aluminium cable to 50mm² copper cable
- Electrical distribution and utility network connections
- Switchboard and transformer cable transitions
- Industrial power cabling and infrastructure installations
- Underground and service cable jointing applications
Standards & Compliance
- AS/NZS 4325.1 for compression and mechanical connectors for power cables
Environmental Benefits
- Aluminium and copper are highly recyclable metals, supporting recovery at end of service life
- Friction-welded construction reduces the risk of galvanic deterioration and can extend connection service life
- Durable cable transitions can reduce premature replacement of connection components and associated waste
Warranty Information
CABAC products are generally covered by a 12-month warranty from the date of purchase unless a different warranty is stated for the product. Warranty excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.
Available Now
Available through authorised CABAC distributors in Australia.
