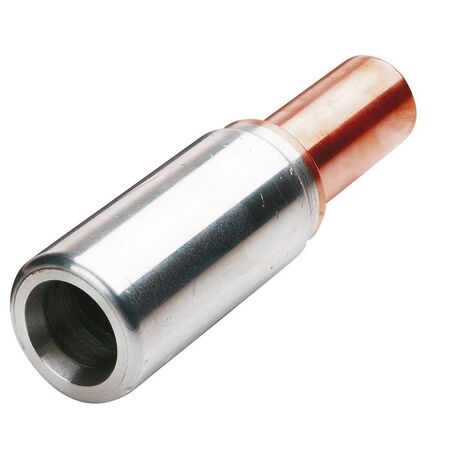

Bi-Metal Link 630AL to 500CU | Friction Welded | Prevents Electrolysis | Individually Packed | @Each of 1 | by Cabac
The Bi-Metal Link 630AL to 500CU is designed for reliable electrical power connectivity between stranded aluminium and copper cables. Manufactured using a friction welding process, it ensures a strong, electrically sound joint while preventing electrolysis. Ideal for industrial and commercial installations, this connector is compatible with CABAC and MSS crimping tools, making it a durable choice for your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure aluminium and 99.9% pure copper
- Cable Size Compatibility: 630 sq.mm aluminium to 500 sq.mm copper
- Manufacturing Process: Friction welded
- Coating: Barrels coated with jointing compound
- Packaging: Individually packed in plastic bags
- Crimping: Compatible with CABAC and MSS power tool dies and standard hex dies
- Dimensions (H x L x W): 20mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Prevents electrolysis between aluminium and copper conductors
- Compatible with CABAC and MSS power tool dies for crimping
- Can be crimped with standard hex dies
- Individually packed in plastic bags for protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure a secure and compliant connection.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium to stranded copper cables
- Suitable for industrial and commercial electrical installations requiring bi-metallic cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents corrosion and electrolysis, extending the lifespan of electrical connections
- High-quality materials ensure durability and reduce the need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bi-Metal Link 630AL to 500CU is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper cable connections.
