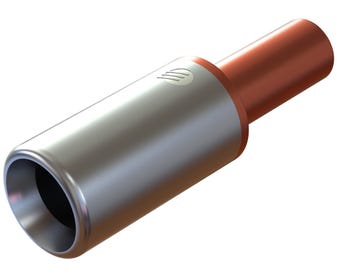

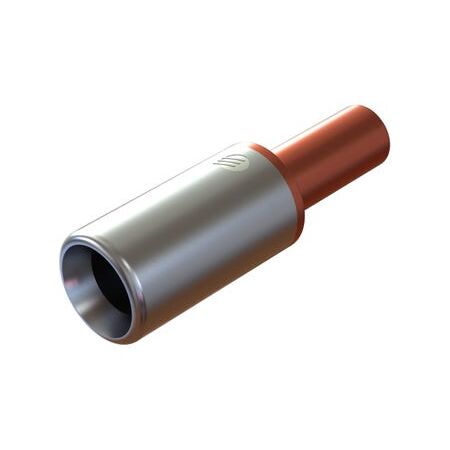

Bi-Metal Link 6mm² Aluminium to 10mm² Copper Cabac

BRAND: CABAC
SKU: BLK6/10
$57.00 List price: $76.00
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Bi-Metal Link features a 6mm² aluminium barrel and a 10mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.

Alternatively Known As: Bi-Metal Reducing Link, Aluminium-to-Copper Cable Link, Al/Cu Crimp Link, Bi-Metal Cable Connector

Technical Specifications
  • Aluminium Cable Size: 6 mm²
  • Copper Cable Size: 10 mm²
  • Material: 99.6% pure aluminium and 99.9% pure copper
  • Joint Construction: Friction-welded aluminium-to-copper connection
  • Barrel Treatment: Jointing compound coated
  • Cable Compatibility: Stranded sector or circular stranded aluminium to stranded copper cable
  • Crimping: Compatible with Australian-standard hex tooling; confirm die selection with the manufacturer
  • Packaging: Individually packed
  • Estimated Overall Length: 70 mm
  • Dimensions (H x L x W): 9mm x 70mm x 9mm
  • Weight: 0.1 kg
Key Features
  • Joins aluminium and copper conductors in a single bi-metallic link
  • Friction-welded joint provides a strong electrically sound connection
  • Aluminium and copper barrels are manufactured from high-purity metals
  • Jointing compound coating helps reduce corrosion and galvanic reaction at the connection
  • Made to Australian dimensions
  • Suitable for crimped cable jointing and termination applications
Professional Installation Requirements
  • Installation must be performed by a licensed electrician using the manufacturer-specified crimping procedure and suitable CABAC or compatible Australian-standard tooling. Verify conductor preparation, die selection, crimp sequence and installation requirements before energising.
Applications
  • Joining 6 mm² aluminium cable to 10 mm² copper cable
  • Low-voltage power cable jointing
  • Electrical distribution and service cable transitions
  • Cable repairs and extensions where aluminium and copper conductors must be connected
Standards & Compliance
  • AS/NZS 3000:2018 Wiring Rules — installation and connection requirements apply to the completed electrical installation
  • CABAC bi-metal link designs reference AS/NZS 4325.1 for applicable compression connector testing; the 6 mm² aluminium and 10 mm² copper sizes are below the principal conductor-size scope stated for that standard
Environmental Benefits
  • Aluminium and copper are highly recyclable materials
  • Friction-welded construction supports a durable connection and may reduce premature replacement waste
  • Jointing compound coating helps protect the connection against corrosion and extend service life
Warranty Information

CABAC warranty terms generally provide a 12-month warranty from the date of purchase where no specific product warranty is stated, subject to correct installation and use. Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical wholesalers; confirm current stock and lead time with the distributor.
