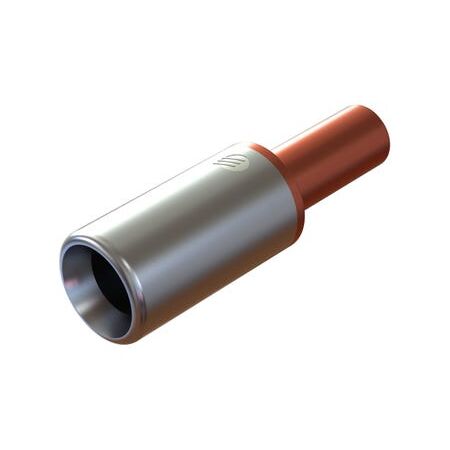

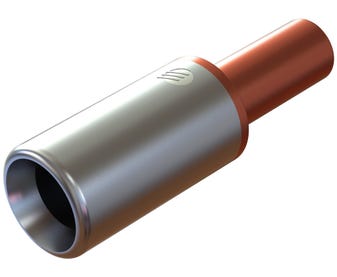

Bi-Metal Link 70mm² Aluminium to 6mm² Copper Cabac

BRAND: CABAC
SKU: BLK70/6
$67.00 List price: $89.40
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Bi-Metal Link features a 70mm² aluminium barrel and a 6mm² copper barrel in one bimetallic joint. Ideal for jointing aluminium cable to copper.

Alternatively Known As: Bi-Metal Cable Link, Aluminium-to-Copper Reducing Link, Al/Cu Crimp Link, Bimetallic Cable Connector

Technical Specifications
  • Aluminium Cable Size: 70mm²
  • Copper Cable Size: 6mm²
  • Material: 99.6% pure aluminium and 99.9% pure copper
  • Joint Construction: Friction-welded aluminium-to-copper connection
  • Barrel Treatment: Pre-filled with jointing compound to reduce oxidation and improve conductivity
  • Crimping: Suitable for CABAC and MSS Power tooling with standard Australian hex dies
  • Aluminium Crimp Die: HT-50/70AL
  • Aluminium Crimping: 1 crimp
  • Copper Crimp Die: K06
  • Copper Crimping: 1 crimp
  • Unit of Sale: Each
  • Dimensions (H x L x W): 24mm x 70mm x 24mm
  • Weight: 0.1 kg
Key Features
  • Joins stranded 70mm² aluminium cable to stranded 6mm² copper cable
  • Provides a permanent aluminium-to-copper transition without direct dissimilar-metal contact at the cable joint
  • Friction-welded joint provides a strong electrically conductive connection
  • High-purity aluminium and copper construction
  • Pre-filled jointing compound helps disrupt aluminium oxidation
  • Designed for use with standard Australian crimping tools and dies
  • Suitable for circular or sector-stranded aluminium cable to circular-stranded copper cable
Professional Installation Requirements
  • Installation should be performed by a licensed electrician using the specified CABAC crimp die combination and in accordance with the manufacturer's crimping instructions and applicable wiring regulations.
Applications
  • Joining aluminium power cable to copper cable
  • Reducing joints in electrical power distribution systems
  • Aluminium cable transitions to copper tails or fly leads
  • Low-voltage electrical installations using dissimilar conductor materials
Standards & Compliance
  • AS/NZS 4325.1:1995 (R2016) for compression and mechanical connectors for power cables with copper or aluminium conductors; verify the specific product's current certification and installation requirements before use. ([webstore.ansi.org](https://webstore.ansi.org/standards/sai/nzs43251995r2016?utm_source=openai))
Environmental Benefits
  • Aluminium and copper are highly recyclable materials, supporting recovery at end of service life
  • Friction-welded construction and jointing compound can help provide a durable connection and reduce premature replacement waste
  • Enables the use of aluminium cable where appropriate, potentially reducing conductor material and installation weight compared with an equivalent copper cable
Warranty Information

CABAC's published terms provide warranty remedies for eligible defective goods, subject to correct use and installation; no specific warranty duration was identified for this bi-metal link. Australian Consumer Law guarantees continue to apply. ([cabac.com.au](https://www.cabac.com.au/terms-and-conditions?utm_source=openai))

Available Now

Available through CABAC and authorised Australian electrical wholesalers; the 70mm² aluminium to 6mm² copper configuration may be supplied as a made-to-order or special-manufacture size where not held as a standard catalogue item.
